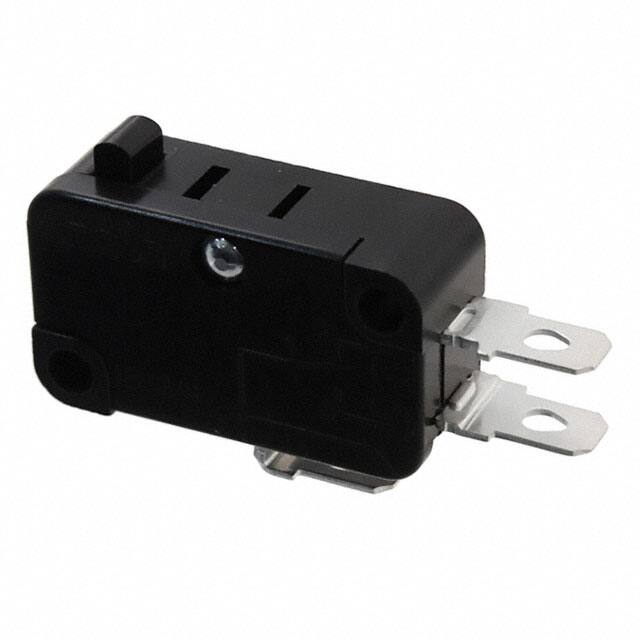

V-15-1A5-T

Teknik Özellikler

Montaj Tipi

Chassis Mount

Overtravel

0.040 (1.0mm)

Actuator Type

Round (Pin Plunger)

Differential Travel

0.016 (0.4mm)

Voltage Rated Dc

30V

Terminal Stili

Solder, Quick Connect - 0.187 (4.7mm)

Akım Değeri

10A

Switch Type

SNAP ACTING/LIMIT SWITCH

HTS Kodu

8536.50.90.40

ECCN Kodu

EAR99

Contact Materials

Silver

Ingress Protection

IP40

Fabrika Tedarik Süresi

12 Weeks

Electricallife

20,000 Cycles

Yayın Yılı

2004

Contact Currentdcmax

15A

Montaj

Chassis Mount, Panel, Screw

Voltage Rated Ac

250V

Terminal

Solder

Circuit

SPDT

Body Height

15.9mm

Mechanical Life

50,000,000 Cycles

Body Breadth

10.3 mm

Max Voltage Rating Ac

250V

Seri

V

RoHS Durumu

RoHS Compliant

Pretravelmax

1.2 mm

Pretravel

0.047 (1.2mm)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Body Length Or Diameter

27.8mm

Parça Durumu

Active

Çalışma Sıcaklığı

-25°C~150°C

Operating Force

200gf

Max Voltage Rating Dc

250V

Operating Position

0.579 (14.7mm)

Actuator Travel

2.5 mm

Switch Function

On-Mom

Current Rating Amps

15A AC 600mA DC

Radyasyon Dayanımı

No

Contact Currentacmax

15A
