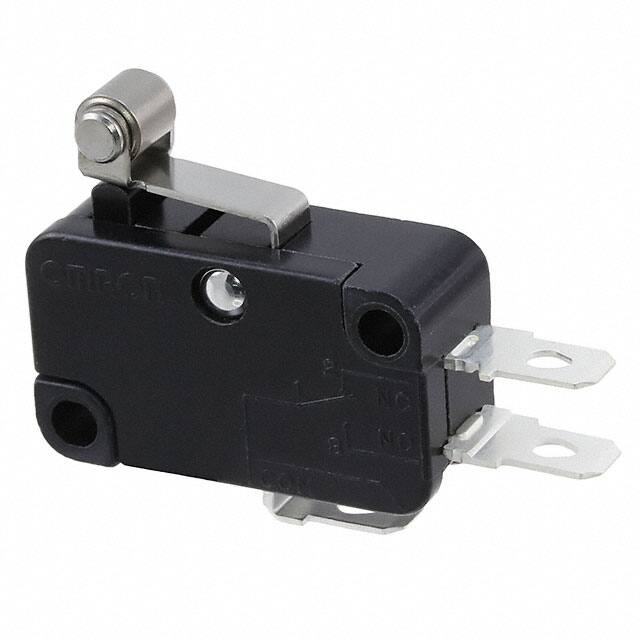

V-105-1A4-T

Teknik Özellikler

Body Length Or Diameter

27.8mm

Parça Durumu

Active

Voltage Rated Ac

250V

Terminal

Solder

REACH Uyumluluk Kodu

unknown

Tip

General Purpose

Actuator Travel

2.5 mm

Ingress Protection

IP40

Contact Currentacmax

10A

Fabrika Tedarik Süresi

17 Weeks

Body Height

15.9mm

ECCN Kodu

EAR99

Circuit

SPDT

RoHS Durumu

RoHS Compliant

Operating Position

0.815 (20.7mm)

Body Breadth

10.3 mm

Electricallife

50,000 Cycles

Yayın Yılı

2002

Mechanical Life

50,000,000 Cycles

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Materials

Silver

Çalışma Sıcaklığı

-25°C~150°C

Switch Function

On-Mom

Voltage Rated Dc

30V

HTS Kodu

8536.50.70.00

Pretravel

0.063 (1.6mm)

Release Force

15gf

Seri

V

Terminal Stili

Solder, Quick Connect - 0.187 (4.7mm)

Actuator Type

Lever, Roller

Max Voltage Rating Ac

250V

Orientation

Straight

Differential Travel

0.025 (0.6mm)

Operating Force

120gf

Contact Currentdcmax

10A

Current Rating Amps

10A AC 600mA DC

Max Voltage Rating Dc

250V

Pretravelmax

1.5 mm

Ambalaj

Bulk

Montaj Tipi

Chassis Mount
