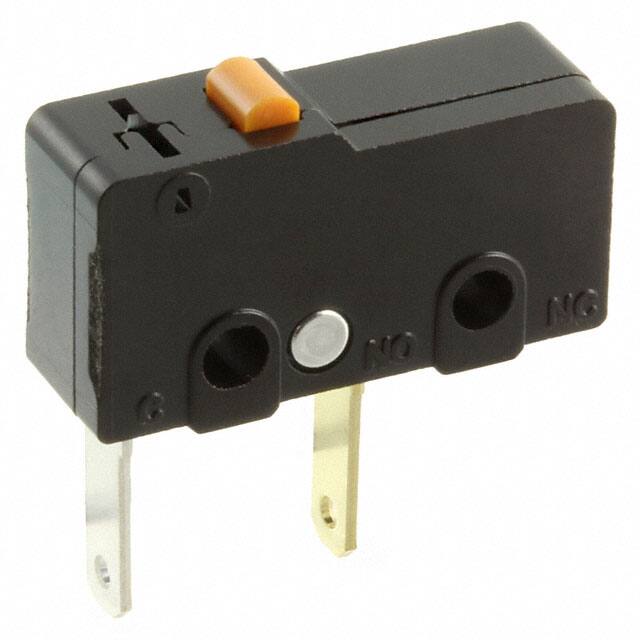

SS-5-3T

Teknik Özellikler

Akım Değeri

4A

Contact Materials

Silver

Switch Function

Off-Mom

Overtravel

0.020 (0.5mm)

Terminal Stili

Quick Connect - 0.110 (2.8mm)

Mechanical Life

30,000,000 Cycles

Max Voltage Rating Dc

14V

Operating Force

150gf

Release Force

25gf

Terminal

Quick Connect

Parça Durumu

Active

Ingress Protection

IP40

Fabrika Tedarik Süresi

11 Weeks

Throw Configuration

SPST

Voltage Rated Dc

30V

Current Rating Amps

5A AC

Differential Travel

0.004 (0.1mm)

Orientation

Straight

Çalışma Sıcaklığı

-25°C~85°C

Max Voltage Rating Ac

125V

Ambalaj

Bulk

Circuit

SPST-NO

Voltage Rated Ac

125V

Pretravel

0.020 (0.5mm)

Seri

SS

ECCN Kodu

EAR99

RoHS Durumu

RoHS Compliant

Montaj Tipi

Chassis Mount

Electricallife

200,000 Cycles

Actuator Type

Round (Pin Plunger)

Operating Position

0.330 (8.4mm)

Switch Type

SNAP ACTING/LIMIT SWITCH

Radyasyon Dayanımı

No

Weight

1.000001g

Yayın Yılı

2004

Nem Hassasiyeti (MSL)

1 (Unlimited)

Montaj

Chassis Mount, Screw
