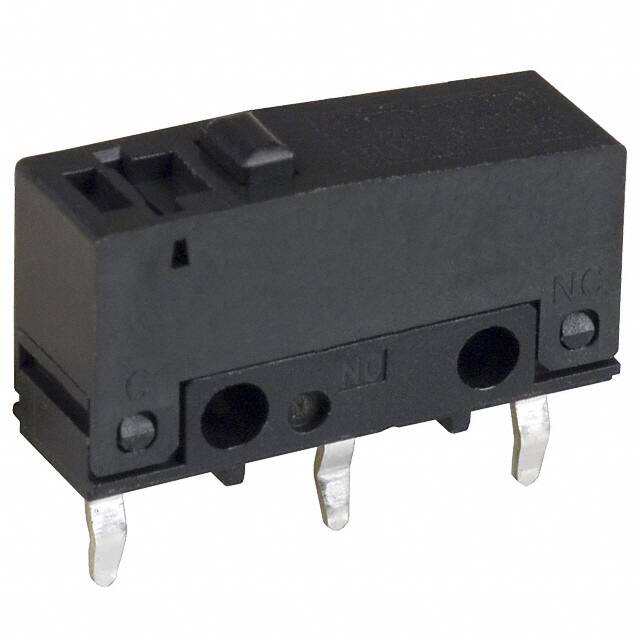

SS-3GPB

Teknik Özellikler

Body Breadth

6.4 mm

Current Rating Amps

3A AC/DC

Voltage Rated Dc

30V

Fabrika Tedarik Süresi

7 Weeks

Ingress Protection

IP40

Parça Durumu

Active

Kurşunsuz

Lead Free

Max Voltage Rating Ac

125V

Çalışma Sıcaklığı

-25°C~85°C

Orientation

Straight

Differential Travel

0.006 (0.15mm)

Terminal Stili

PC Pin

Mechanical Life

1,000,000 Cycles

Overtravel

0.015 (0.4mm)

Contact Dc Max Rating R Load

3A@30VDC

Switch Function

On-Mom

Akım Değeri

3A

Contact Materials

Silver

Release Force

20gf

Terminal

Solder

Operating Force

153gf

HTS Kodu

8536.50.70.00

Max Voltage Rating Dc

30V

Operating Position

0.330 (8.4mm)

Actuator Type

Round (Pin Plunger)

Radyasyon Dayanımı

No

Switch Type

SNAP ACTING/LIMIT SWITCH

Kurşunsuz Kodu

yes

Contact Currentdcmax

3A

Montaj

PCB, Screw, Through Hole

Nem Hassasiyeti (MSL)

Not Applicable

Yayın Yılı

2002

Weight

1.6g

Seri

SS-P

Pretravel

0.024 (0.6mm)

ECCN Kodu

EAR99

Pretravelmax

0.6 mm

Number Of Poles

1

Ambalaj

Tray

Circuit

SPDT
