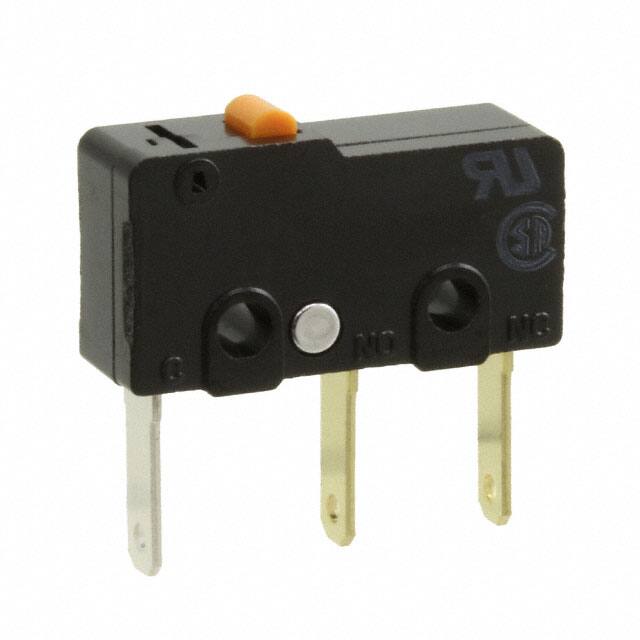

SS-01T

Teknik Özellikler

Uzunluk

19.8mm

Parça Durumu

Active

Yayın Yılı

2003

Nem Hassasiyeti (MSL)

Not Applicable

Contact Materials

Gold

Operating Position

0.330 (8.4mm)

Seri

SS

Montaj

Chassis Mount, Panel, Screw

HTS Kodu

8536.50.70.00

Weight

1.6g

Operating Force

150gf

Electricallife

200,000 Cycles

Switch Function

On-Mom

Montaj Tipi

Chassis Mount

Actuator Travel

1 mm

Pretravelmax

0.5 mm

Orientation

Straight

Overtravel

0.020 (0.5mm)

Çalışma Sıcaklığı

-25°C~85°C

Ingress Protection

IP40

Akım Değeri

100mA

Contact Currentacmax

0.1A

Circuit

SPDT

Max Voltage Rating Dc

30V

Kurşunsuz

Lead Free

Pretravel

0.020 (0.5mm)

Voltage Rated Ac

125V

Differential Travel

0.004 (0.1mm)

Actuator Type

Round (Pin Plunger)

Max Voltage Rating Ac

125V

Contact Current Rating

100mA

Ambalaj

Bulk

Contact Dc Max Rating R Load

.1A@30VDC

Current Rating Amps

100mA AC/DC

Fabrika Tedarik Süresi

15 Weeks

Contact Currentdcmax

0.1A

Pozisyon Sayısı

2

Voltage Rated Dc

30V

Depth

6.4mm

RoHS Durumu

RoHS Compliant
