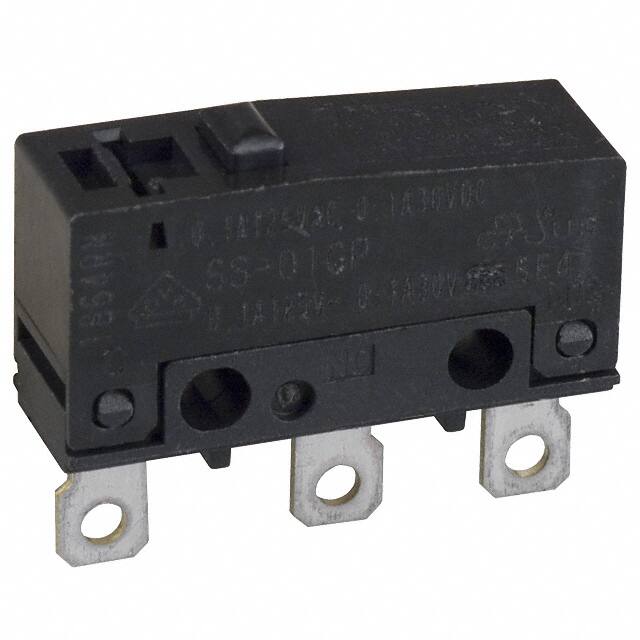

SS-01GP

Teknik Özellikler

Electricallife

200,000 Cycles

Kurşunsuz Kodu

yes

Body Breadth

6.4 mm

RoHS Durumu

RoHS Compliant

Montaj Tipi

Chassis Mount

Switch Function

On-Mom

Terminal Stili

Solder Lug

ECCN Kodu

EAR99

Terminal

Solder

Pretravelmax

0.6 mm

Overtravel

0.015 (0.4mm)

Orientation

Straight

Switch Type

SNAP ACTING/LIMIT SWITCH

Çalışma Sıcaklığı

-25°C~85°C

Ingress Protection

IP40

Release Force

20gf

Akım Değeri

100mA

Mechanical Life

1,000,000 Cycles

Circuit

SPDT

Pretravel

0.024 (0.6mm)

Kurşunsuz

Lead Free

Max Voltage Rating Dc

30V

Voltage Rated Ac

125V

Differential Travel

0.006 (0.15mm)

Actuator Type

Round (Pin Plunger)

Parça Durumu

Active

Max Voltage Rating Ac

125V

Yayın Yılı

2004

Nem Hassasiyeti (MSL)

Not Applicable

Ambalaj

Tray

Contact Materials

Gold

Number Of Poles

1

Current Rating Amps

100mA AC/DC

Fabrika Tedarik Süresi

9 Weeks

Operating Position

0.330 (8.4mm)

Seri

SS-P

Montaj

Chassis Mount, Screw, Solder, Through Hole

HTS Kodu

8536.50.70.00

Weight

1.6g

Operating Force

153gf
