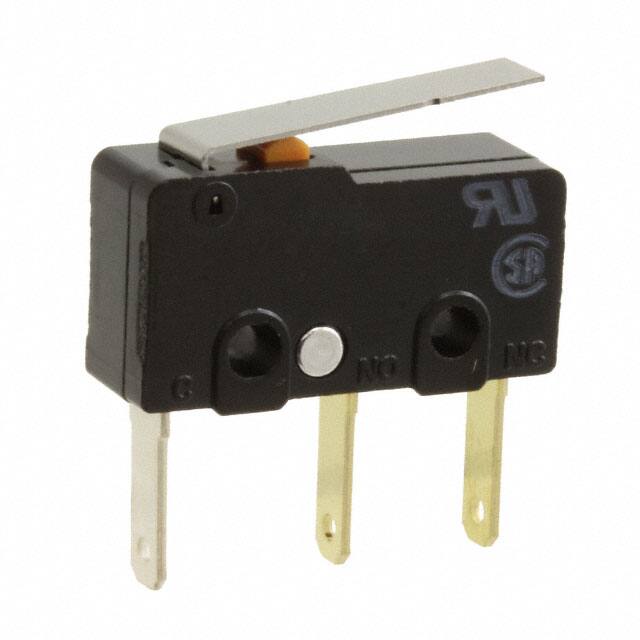

SS-01GL-FT

Teknik Özellikler

ECCN Kodu

EAR99

Terminal

Quick Connect

Actuator Travel

2 mm

Terminal Stili

Quick Connect - 0.110 (2.8mm)

Contact Ac Max Rating R Load

.1A@125VAC

Body Height

10.2mm

Switch Function

On-Mom

Reach Svhc

Unknown

Montaj Tipi

Chassis Mount

Electricallife

200,000 Cycles

RoHS Durumu

RoHS Compliant

Body Breadth

6.4 mm

Kurşunsuz Kodu

yes

Mechanical Life

30,000,000 Cycles

Akım Değeri

100mA

Switch Type

SNAP ACTING/LIMIT SWITCH

Çalışma Sıcaklığı

-25°C~85°C

Release Force

2.039gf

Ingress Protection

IP40

Pretravelmax

1.2 mm

Orientation

Straight

Overtravel

0.047 (1.2mm)

Kılıf / Paket

100

Contact Current Rating

100mA

Nem Hassasiyeti (MSL)

Not Applicable

Contact Dc Max Rating R Load

.1A@30VDC

Contact Materials

Gold

Ambalaj

Bulk

Parça Durumu

Active

Actuator Type

Lever, Straight

Max Voltage Rating Ac

125V

Yayın Yılı

2003

Voltage Rated Ac

125V

Differential Travel

0.031 (0.8mm)

Circuit

SPDT

Contact Currentacmax

0.1A

Max Voltage Rating Dc

30V

Kurşunsuz

Lead Free

Operating Force

16gf

Voltage Rated Dc

30V
