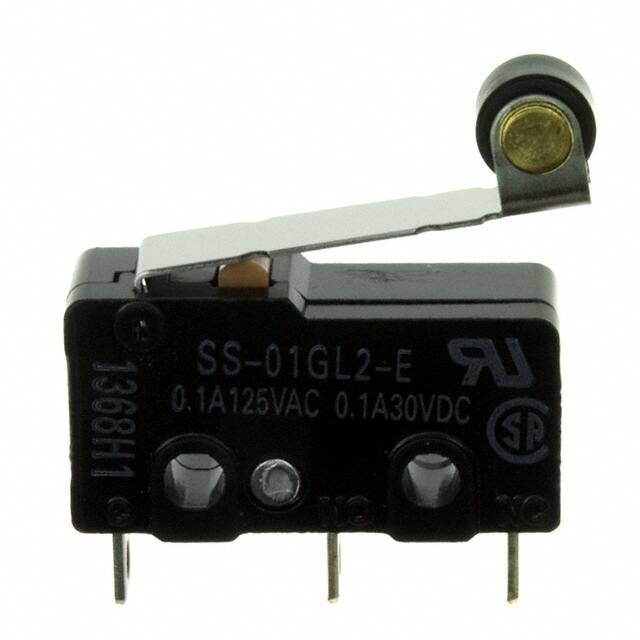

SS-01GL2-E

Teknik Özellikler

Mechanical Life

30,000,000 Cycles

Release Force

1.020gf

Switch Type

SNAP ACTING/LIMIT SWITCH

Max Current Rating

100mA

Kılıf / Paket

100

Terminal

Solder

ECCN Kodu

EAR99

Terminal Stili

Solder Lug

Reach Svhc

Unknown

Body Height

10.2mm

RoHS Durumu

RoHS Compliant

Kurşunsuz Kodu

yes

Depth

6.4mm

Voltage Rated Dc

30V

Actuator Material

Polyacetal, Resin, Stainless Steel

Contact Currentdcmax

0.1A

Fabrika Tedarik Süresi

11 Weeks

Current Rating Amps

100mA AC/DC

Ambalaj

Tray

Contact Dc Max Rating R Load

.1A@30VDC

Contact Current Rating

100mA

Max Voltage Rating Ac

125V

Actuator Type

Lever, Roller

Differential Travel

0.031 (0.8mm)

Voltage Rated Ac

125V

Kurşunsuz

Lead Free

Max Voltage Rating Dc

30V

Circuit

SPDT

Contact Currentacmax

0.1A

Akım Değeri

100mA

Ingress Protection

IP40

Çalışma Sıcaklığı

-25°C~85°C

Overtravel

0.047 (1.2mm)

Orientation

Straight

Pretravelmax

1.2 mm

Switch Function

On-Mom

Montaj Tipi

Chassis Mount

Contact Ac Max Rating R Load

.1A@125VAC

Electricallife

200,000 Cycles

Operating Force

8.158gf
