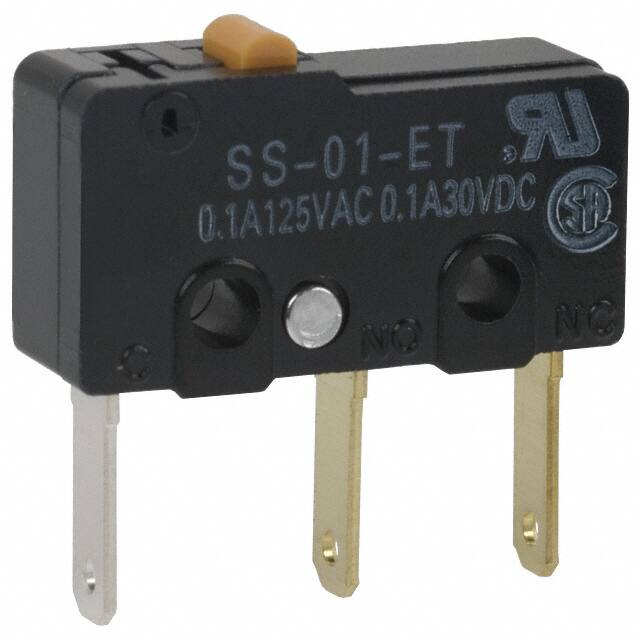

SS-01-ET

Teknik Özellikler

Depth

6.4mm

Kurşunsuz Kodu

yes

RoHS Durumu

RoHS Compliant

Reach Svhc

Unknown

Terminal Stili

Quick Connect - 0.110 (2.8mm)

ECCN Kodu

EAR99

Terminal

Quick Connect

Kılıf / Paket

100

Max Current Rating

100mA

Switch Type

SNAP ACTING/LIMIT SWITCH

Release Force

2.039gf

Mechanical Life

30,000,000 Cycles

Circuit

SPDT

Contact Currentacmax

0.1A

Pretravel

0.020 (0.5mm)

Kurşunsuz

Lead Free

Max Voltage Rating Dc

30V

Voltage Rated Ac

125V

Differential Travel

0.004 (0.1mm)

Actuator Type

Round (Pin Plunger)

Max Voltage Rating Ac

125V

Contact Current Rating

100mA

Ambalaj

Bulk

Contact Dc Max Rating R Load

.1A@30VDC

Fabrika Tedarik Süresi

15 Weeks

Current Rating Amps

100mA AC/DC

Pozisyon Sayısı

2

Contact Currentdcmax

0.1A

Voltage Rated Dc

30V

Electricallife

200,000 Cycles

Montaj Tipi

Chassis Mount

Switch Function

On-Mom

Actuator Travel

1 mm

Pretravelmax

0.5 mm

Overtravel

0.020 (0.5mm)

Orientation

Straight

Çalışma Sıcaklığı

-25°C~85°C

Ingress Protection

IP40

Akım Değeri

100mA

Uzunluk

19.8mm
