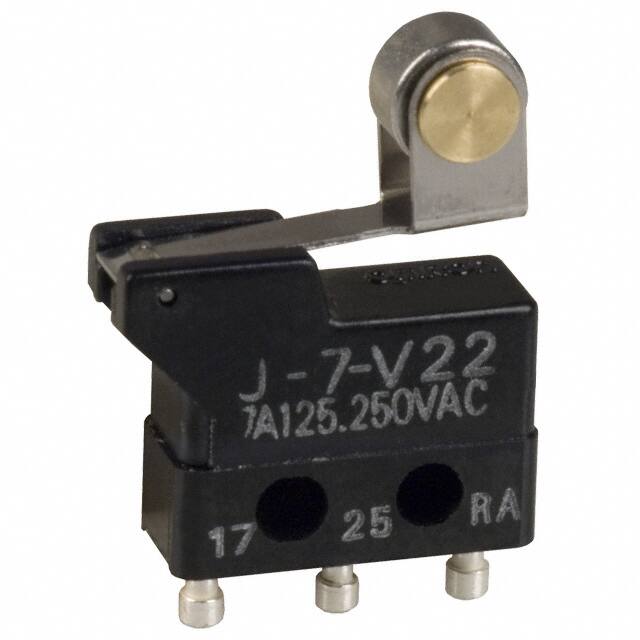

J-7-V22

Teknik Özellikler

Operating Force

55gf

Montaj Tipi

Chassis Mount

Max Voltage Rating Dc

250V

RoHS Durumu

RoHS Compliant

Current Rating Amps

7A AC

Electricallife

50,000 Cycles

Contact Currentacmax

7A

Max Voltage Rating Ac

250V

REACH Uyumluluk Kodu

unknown

Circuit

SPDT

Terminal Stili

Solder Turret

Çalışma Sıcaklığı

-10°C~80°C

Seri

J

Contact Current Rating

7A

Pretravel

0.063 (1.6mm)

Ambalaj

Tube

Mechanical Life

10,000,000 Cycles

Contact Plating

Gold

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Materials

Silver

Akım Değeri

7A

Yayın Yılı

2004

Differential Travel

0.016 (0.4mm)

ECCN Kodu

EAR99

Fabrika Tedarik Süresi

8 Weeks

Contact Currentdcmax

7A

Switch Function

On-Mom

Voltage Rated Ac

250V

Parça Durumu

Active

Kurşunsuz

Lead Free

Overtravel

0.010 (0.25mm)

HTS Kodu

8536.50.70.00

Release Force

5.099gf

Operating Position

0.579 (14.7mm)

Terminal

Solder

Actuator Type

Lever, Roller

Montaj

Chassis Mount, Screw

Orientation

Straight

Switch Type

SNAP ACTING/LIMIT SWITCH

Number Of Poles

1
