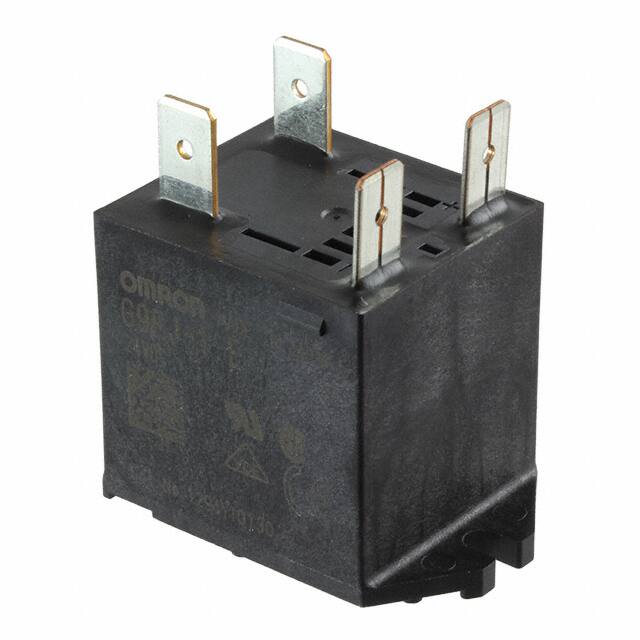

G9EJ-1-E-UVDDC24

Teknik Özellikler

Max Voltage Rating Ac

400V

RoHS Durumu

RoHS Compliant

Coilinput Supply Type

DC

Must Release Voltage

1.2VDC

Seri

G9EJ-1-E

Release Time

30ms

Dielectric Strength Between Open Contacts

2500 Vrms

Montaj Tipi

Chassis Mount

Coilresistance

480Ohm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contactoutput Supply Type

DC

Weight

50g

Fabrika Tedarik Süresi

11 Weeks

Switching Voltage

400VDC -Max

Coil Current

50mA

Insulation Resistance

1000000000Ohm

Contact Dc Max Rating R Load

15A@400VDC

Parça Durumu

Active

Electricallife

10000 Cycle(s)

ECCN Kodu

EAR99

Reference Standard

CSA; UL

Must Operate Voltage

14.4VDC

Max Current Rating

15A

Terminal

Plug

Operate Time

50ms

Body Height

31mm

Radyasyon Dayanımı

No

Coil Type

Non Latching

Coil Voltage

24VDC

Relay Type

Automotive

Body Length Or Diameter

44mm

Terminal Sayısı

4

Relay Action

LATCHED

Contact Resistance

100mOhm

Montaj

Brackets, Chassis Mount

Body Breadth

27 mm

Coil Power

1.2W

Input Switching Control Type

Random

Kontak Formu

SPST-NO (1 Form A)

Coil Voltage Dc

24V
