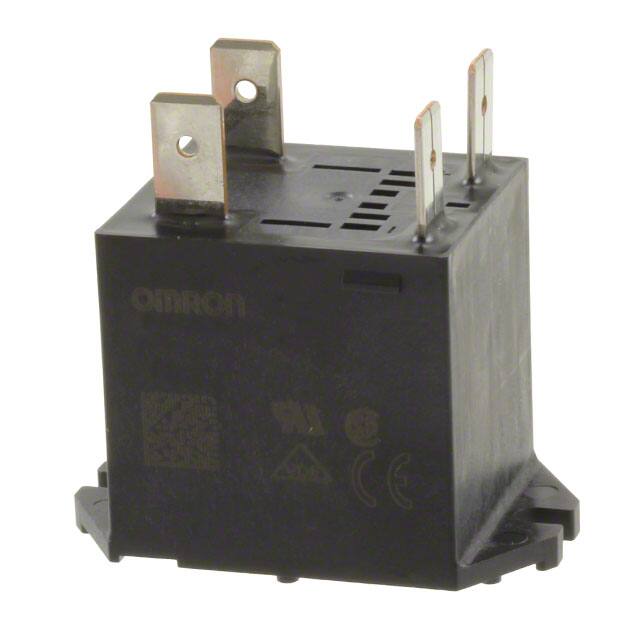

G9EJ-1-E-UVDDC12

Teknik Özellikler

Coilresistance

120Ohm

Contactoutput Supply Type

DC

Nem Hassasiyeti (MSL)

1 (Unlimited)

Weight

50g

Fabrika Tedarik Süresi

10 Weeks

Switching Voltage

400VDC -Max

Coil Current

100mA

RoHS Durumu

RoHS Compliant

Max Voltage Rating Ac

400V

Must Release Voltage

0.6VDC

Coilinput Supply Type

DC

Release Time

30ms

Seri

G9EJ-1-E

Dielectric Strength Between Open Contacts

2500 Vrms

Montaj Tipi

Chassis Mount

ECCN Kodu

EAR99

Reference Standard

CSA; UL

Must Operate Voltage

7.2VDC

Insulation Resistance

1000000000Ohm

Contact Dc Max Rating R Load

15A@400VDC

Parça Durumu

Active

Electricallife

10000 Cycle(s)

Terminal

Plug

Operate Time

50ms

Body Height

31mm

Relay Type

Automotive

Coil Voltage

12VDC

Coil Type

Non Latching

Radyasyon Dayanımı

No

Max Current Rating

15A

Coil Voltage Dc

12V

Çalışma Sıcaklığı

-40°C~70°C

Dielectric Strength Between Coil And Contacts

2500 Vrms

Physical Dimension

44mm x 27mm x 31mm

Ambalaj

Tray

Terminal Stili

Plug In, Quick Connect - 0.250 (6.3mm)

Throw Configuration

SPST

Terminal Sayısı

4

Body Length Or Diameter

44mm

Relay Action

LATCHED
