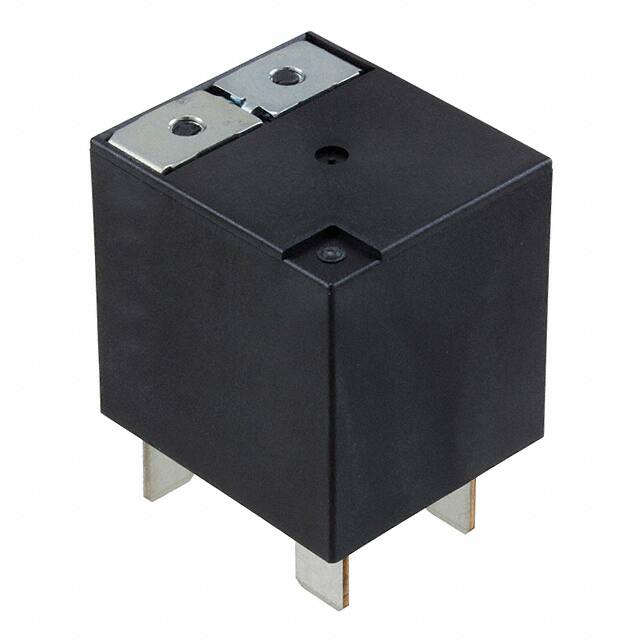

G9EJ-1-DC12

Teknik Özellikler

Seri

G9EJ

Release Time

30ms

Dielectric Strength Between Open Contacts

2500 Vrms

Max Voltage Rating Ac

400V

RoHS Durumu

RoHS Compliant

Coilinput Supply Type

DC

Must Release Voltage

0.6VDC

Weight

50g

Yayın Yılı

2002

Coil Current

167mA

Switching Voltage

400VDC -Max

Fabrika Tedarik Süresi

10 Weeks

Coilresistance

72Ohm

Contactoutput Supply Type

AC/DC

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Active

Electricallife

100000 Cycle(s)

Insulation Resistance

1000000000Ohm

Must Operate Voltage

7.2VDC

Max Voltage Rating Dc

400V

Power Consumption

2W

ECCN Kodu

EAR99

Max Current Rating

25A

Genişlik

27mm

Radyasyon Dayanımı

No

Coil Type

Non Latching

Coil Voltage

12VDC

Relay Type

Automotive

Terminal

Quick Connect

Operate Time

50ms

Input Switching Control Type

Random

Kontak Formu

SPST-NO (1 Form A)

Yükseklik

30mm

Terminal Sayısı

4

Relay Action

LATCHED

Uzunluk

31mm

Montaj

Flanges, Plug-In, Socketable

Physical Dimension

31mm x 27mm x 30mm

Terminal Stili

Plug In, Quick Connect - 0.250 (6.3mm)

Ambalaj

Bulk
