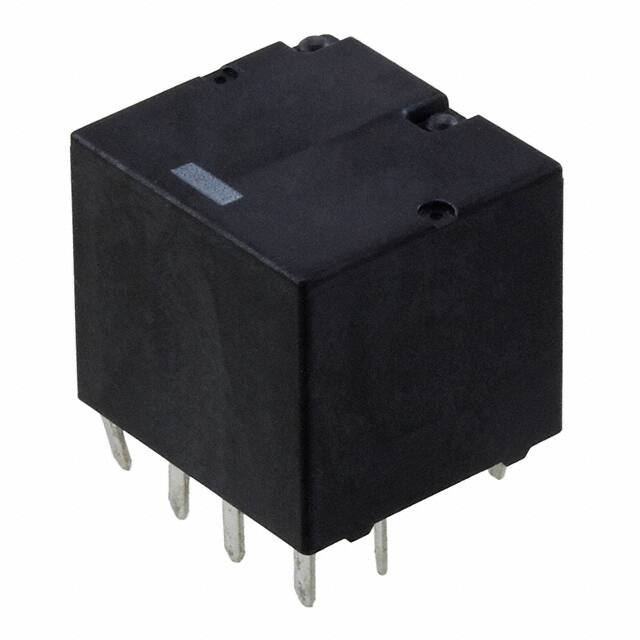

G8NW-2 DC12

Teknik Özellikler

Release Time

20 ms

Seri

G8NW-2

Montaj Tipi

Through Hole

RoHS Durumu

Non-RoHS Compliant

Must Release Voltage

1VDC

Coilinput Supply Type

DC

Contact Rating Current

30A

Yayın Yılı

2005

Switching Voltage

16VDC -Max

Coil Current

53.3mA

Contact Materials

Silver Tin Oxide (AgSnO)

Coilresistance

225Ohm

Contactoutput Supply Type

AC/DC

Nem Hassasiyeti (MSL)

Not Applicable

Yüzey Montaj

NO

Parça Durumu

Obsolete

Electricallife

100000 Cycle(s)

Contact Voltagedcmax

16V

HTS Kodu

8536.41.00.05

REACH Uyumluluk Kodu

unknown

Must Operate Voltage

7.2VDC

ECCN Kodu

EAR99

Body Height

13.8mm

Relay Type

POWER/SIGNAL RELAY

Coil Voltage

12VDC

Coil Type

Non Latching

Packing Method

TUBE

Operate Time

10ms

Coil Power

640mW

Kontak Formu

SPDT (1 Form C) x 2

Coil Release Voltagedc

1V

Body Length Or Diameter

15.7mm

Relay Action

MOMENTARY

Contact Voltageacmax

16V

Body Breadth

14.3 mm

Physical Dimension

15.7mm x 14.3mm x 13.8mm

Terminal Stili

PC Pin

Ambalaj

Bulk

Çalışma Sıcaklığı

-40°C~85°C
