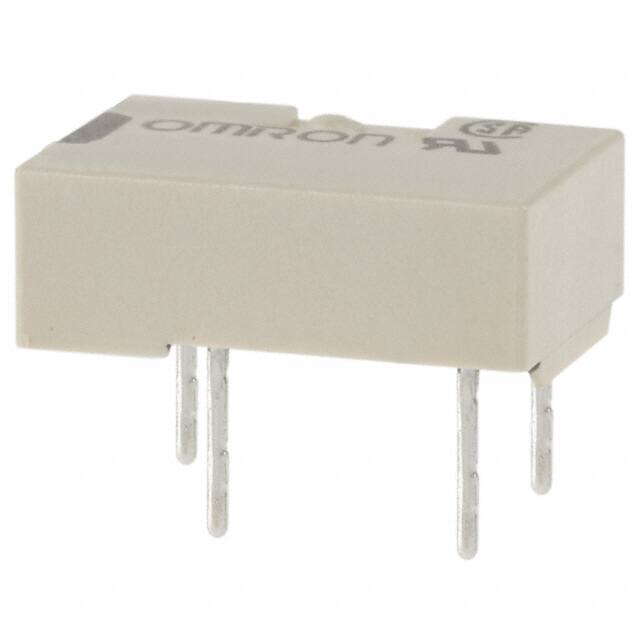

G6L-1P-DC24

Teknik Özellikler

Nem Hassasiyeti (MSL)

Not Applicable

Electricallife

100000 Cycle(s)

Operate Time

5ms

Must Operate Voltage

18VDC

Fabrika Tedarik Süresi

49 Weeks

Contact Currentacmax

0.3A

Release Time

5 ms

Throw Configuration

SPST

Contact Materials

Gold, Silver

Parça Durumu

Active

Seri

G6L

Terminal Stili

PC Pin

Coil Voltage

24VDC

Weight

600mg

Switching Voltage

125VAC 60VDC -Max

Switching Current

300mA

Radyasyon Dayanımı

No

Max Voltage Rating Ac

125V

Relay Type

Telecom

Pin Sayısı

4

Max Voltage Rating Dc

60V

Coil Power

230mW

Contact Ac Max Rating R Load

.3A@125VAC

Dielectric Strength Between Coil And Contacts

1000 Vrms

Pitch

2.54mm

Contactoutput Supply Type

AC/DC

Dielectric Strength Between Open Contacts

750 Vrms

Coilresistance

2.5kOhm

Coilinput Supply Type

DC

Montaj

PCB, Through Hole

Yayın Yılı

2002

Input Switching Control Type

Random

Coil Type

Non Latching

Test Voltage

1kV

Kurşunsuz

Lead Free

Terminal Sayısı

4

Montaj Tipi

Through Hole

Contact Resistance

100mOhm

Ratings

IP67

Uzunluk

10.6mm
