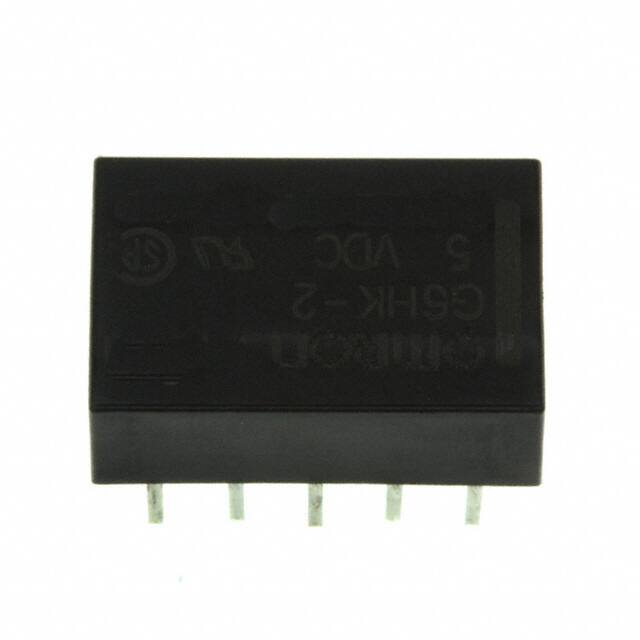

G6HK-2-DC5

Teknik Özellikler

Max Voltage Rating Dc

110V

Pin Sayısı

10

Relay Type

Telecom

Coil Power

200mW

Contact Ac Max Power Rating R Load

62.5VA@125VAC

Max Voltage Rating Ac

125V

Physical Dimension

14mm X 9mm X 5.25mm

Switching Voltage

125VAC 110VDC -Max

Montaj

Through Hole

Coilinput Supply Type

DC

Contact Ac Max Rating R Load

.5A@125VAC

Coilresistance

125Ohm

Voltage Rated Ac

125V

REACH Uyumluluk Kodu

unknown

Contactoutput Supply Type

AC/DC

Operate Time

3ms

Must Operate Voltage

3.75VDC

Contact Currentacmax

0.5A

Nem Hassasiyeti (MSL)

Not Applicable

Terminal Stili

PC Pin

Seri

G6H

Parça Durumu

Obsolete

Body Breadth

9 mm

HTS Kodu

8536.41.00.20

Weight

1.5g

Coil Voltage

5VDC

Contact Materials

Silver (Ag), Gold (Au)

Throw Configuration

DPDT

Release Time

2 ms

Depth

9.3mm

Ambalaj

Tube

Terminal

PC Pin

Contact Dc Max Rating R Load

2A@30VDC

Çalışma Sıcaklığı

-40°C~70°C

Power Consumption

200mW

Coil Voltage Dc

5V

RoHS Durumu

RoHS Compliant

Relay Action

LATCHED

Max Current Rating

1A

Contact Currentdcmax

2A
