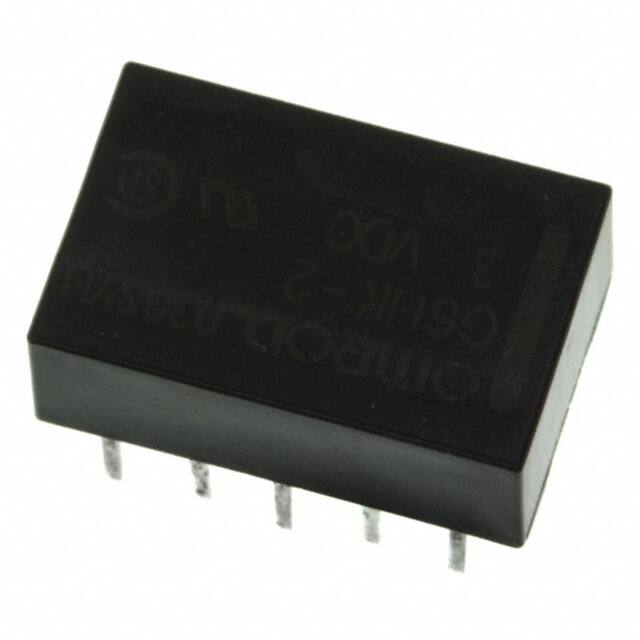

G6HK-2-DC3

Teknik Özellikler

Body Length Or Diameter

14mm

Electricallife

200000 Cycle(s)

Nem Hassasiyeti (MSL)

Not Applicable

Operate Time

3ms

Length Termination

0.0035 inch

Contact Currentacmax

0.5A

Must Operate Voltage

2.25VDC

Contact Materials

Silver (Ag), Gold (Au)

Throw Configuration

DPDT

Release Time

2 ms

Terminal Stili

PC Pin

Seri

G6H

Body Breadth

9 mm

Parça Durumu

Obsolete

Weight

1.5g

HTS Kodu

8536.41.00.20

Coil Voltage

3VDC

Contact Ac Max Power Rating R Load

62.5VA@125VAC

Max Voltage Rating Ac

125V

Switching Voltage

125VAC 110VDC -Max

Physical Dimension

14mm X 9mm X 5.25mm

Max Voltage Rating Dc

110V

Pin Sayısı

10

Relay Type

Telecom

Coil Power

200mW

Contact Ac Max Rating R Load

.5A@125VAC

Dielectric Strength Between Coil And Contacts

707.21 Vrms

Voltage Rated Ac

125V

Coilresistance

45Ohm

REACH Uyumluluk Kodu

unknown

Contactoutput Supply Type

AC/DC

Dielectric Strength Between Open Contacts

707.21 Vrms

Montaj

Through Hole

Coilinput Supply Type

DC

Yayın Yılı

2002

Input Switching Control Type

Random

Onay Kuruluşu

CSA, UL

Coil Type

Latching, Dual Coil

Kılıf / Paket

DIP

Montaj Tipi

Through Hole
