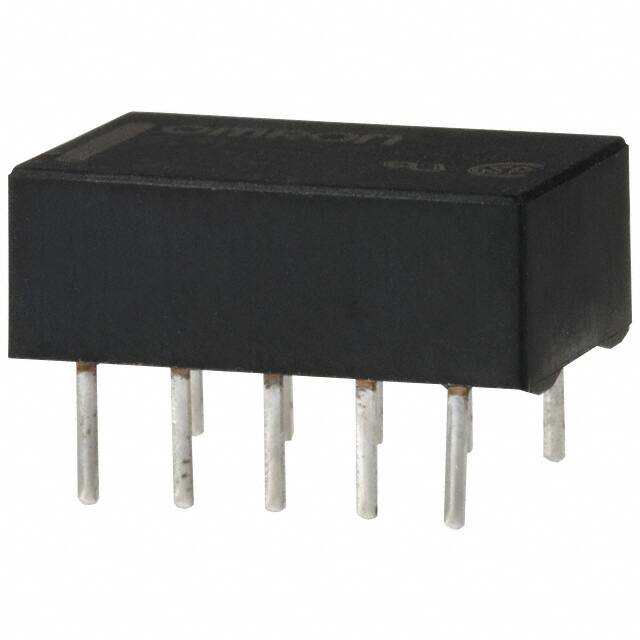

G6H-2-DC9

Teknik Özellikler

Yayın Yılı

2002

Input Switching Control Type

Random

Kılıf / Paket

DIP

Coil Type

Non Latching

Montaj Tipi

Through Hole

Contact Resistance

50mOhm

Terminal Sayısı

10

Kurşunsuz

Lead Free

ECCN Kodu

EAR99

Coil Voltage Dc

9V

Power Consumption

140mW

Çalışma Sıcaklığı

-40°C~70°C

Contact Dc Max Rating R Load

2A@30VDC

Max Current Rating

1A

Relay Action

MOMENTARY

RoHS Durumu

RoHS Compliant

Terminal

PC Pin

Ambalaj

Tube

Must Release Voltage

0.9VDC

Reference Standard

CSA; UL

Body Height

5.25mm

Coil Current

15.5mA

Kontak Formu

DPDT (2 Form C)

Pcb Hole Count

10

Contact Currentdcmax

2A

Body Length Or Diameter

14mm

Nem Hassasiyeti (MSL)

Not Applicable

Electricallife

200000 Cycle(s)

Operate Time

3ms

Length Termination

0.0035 inch

Must Operate Voltage

6.75VDC

Contact Currentacmax

0.5A

Throw Configuration

DPDT

Release Time

2ms

Contact Materials

Silver (Ag), Gold (Au)

Parça Durumu

Obsolete

Body Breadth

9 mm

Terminal Stili

PC Pin

Seri

G6H

Coil Voltage

9VDC
