Adet bazlı fiyat
- 1+ adet$1.92
- 10+ adet$1.82
- 100+ adet$1.71
- 500+ adet$1.62
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- Coil Voltagedcmax
- 13.2V
- Termination Type
- SCREW
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Contact Resistance
- 100mOhm
- Operate Time
- 10 ms
- Input Switching Control Type
- Random
- Yayın Yılı
- 2000
- Contact Ac Max Rating I Load
- 1.5A@250VAC

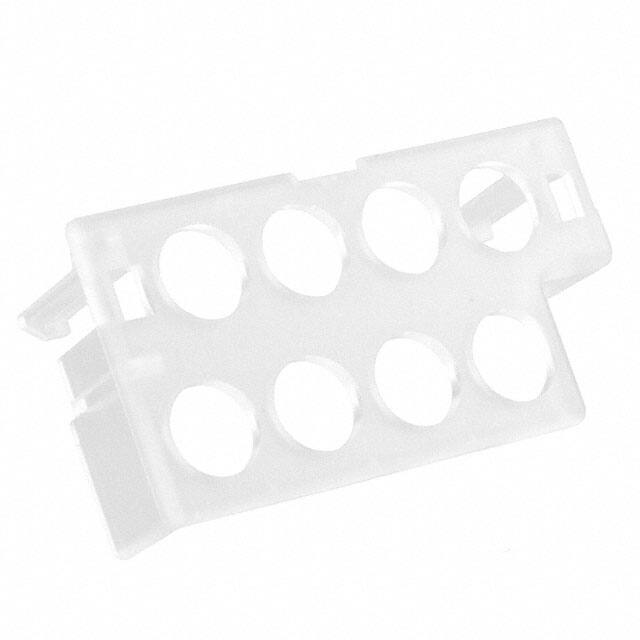

- Accessory Type
- Cover, Terminal
- Electricallife
- 100000 Cycle(s)
- Coil Release Voltagedc
- 1.2V
- Montaj
- Hardware
- Relay Function
- SPDT
- Contactoutput Supply Type
- AC/DC
- ECCN Kodu
- EAR99
- Operating Temperature Max
- 55°C
- Contact Voltageacmax
- 250V
- Coil Operate Voltagedc
- 9.6V
- Fabrika Tedarik Süresi
- 7 Weeks
- Relay Action
- LATCHED
- Operating Temperature Min
- -25°C
- Seri
- G6B-4
- Contact Ac Max Rating R Load
- 5A@250VAC
- Contact Currentacmax
- 5A
- HTS Kodu
- 8536.41.00.20
- Contact Voltagedcmax
- 30V
- Insulation Resistance
- 1000000000Ohm
- Release Time
- 15 ms
- Coilinput Supply Type
- DC
- Physical Dimension
- 84mm x 48mm x 31mm
- Contact Currentdcmax
- 5A
- Contact Dc Max Rating R Load
- 5A@30VDC
- Body Breadth
- 48 mm
- Dielectric Strength Between Coil And Contacts
- 2000 Vrms
- RoHS Durumu
- RoHS Compliant
- Parça Durumu
- Active
- Body Height
- 31mm
- Coil Voltage
- 12V
- Body Length Or Diameter
- 84mm
- Relay Form
- 1 FORM C
