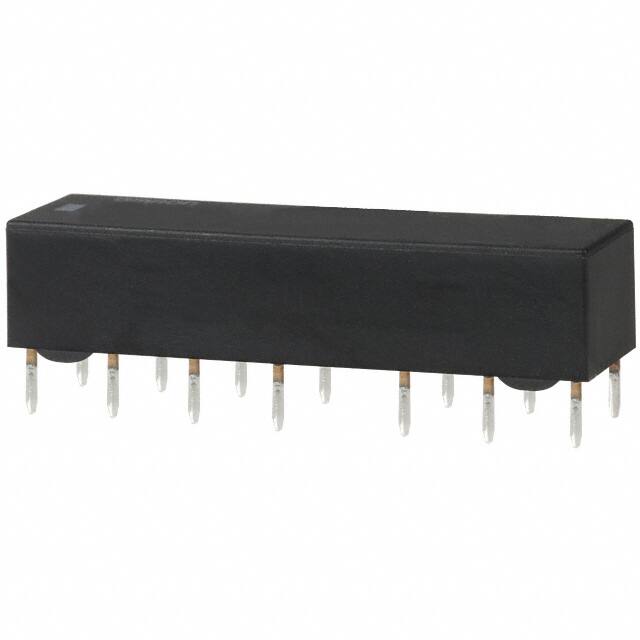

G6A-434P-ST-US-DC24

Teknik Özellikler

Kılıf / Paket

DIP

Relay Type

General Purpose

ECCN Kodu

EAR99

Voltage Rated Ac

250V

Max Current Rating

2A

Electricallife

500000 Cycle(s)

Montaj Tipi

Through Hole

Montaj

Through Hole

Uzunluk

35.4mm

Dielectric Strength Between Open Contacts

707.21 Vrms

Must Release Voltage

2.4VDC

Contact Ac Max Rating I Load

0.3A@125VAC

Çalışma Sıcaklığı

-40°C~70°C

Max Voltage Rating Ac

250V

Input Switching Control Type

Random

Nem Hassasiyeti (MSL)

Not Applicable

Terminal Sayısı

14

Contact Dc Max Power Rating R Load

60W@220VDC

Coilresistance

1.6kOhm

Coil Type

Non Latching

Terminal

PC Pin

Contact Ac Max Power Rating R Load

125VA@250VAC

RoHS Durumu

RoHS Compliant

Akım Değeri

2A

Switching Voltage

250VAC 220VDC -Max

Depth

10.1mm

Coilinput Supply Type

DC

Coil Voltage Dc

24V

Pcb Hole Count

14

Power Consumption

360mW

Insulation Resistance

1000000000Ohm

Contact Materials

Silver Palladium (AgPd), Gold (Au)

Seri

G6A

Coil Current

15mA

Max Voltage Rating Dc

220V

Contact Ac Max Rating R Load

.6A@125VAC

Reference Standard

CSA; UL

Relay Action

MOMENTARY

REACH Uyumluluk Kodu

unknown

Kontak Formu

4PDT (4 Form C)
