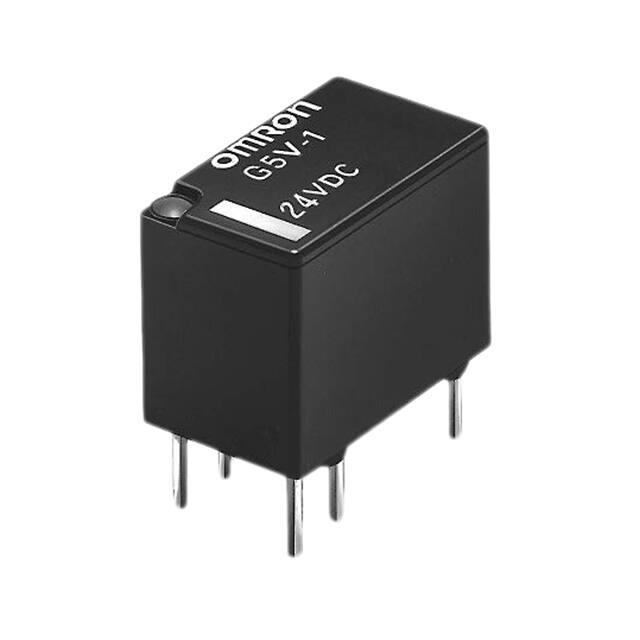

G5V-1-T90 DC12

Teknik Özellikler

Switching Voltage

125VAC 60VDC -Max

Contact Voltagedcmax

60V

Release Time

5 ms

Contact Resistance

100mOhm

Body Height

10mm

Input Switching Control Type

Random

Kontak Formu

SPDT (1 Form C)

Body Breadth

7.5 mm

Body Length Or Diameter

12.5mm

Coilresistance

960Ohm

Contact Materials

Silver (Ag), Gold (Au)

Montaj Tipi

Through Hole

Coil Current

12.5mA

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Resistance

1000000000Ohm

Ambalaj

Tube

Dielectric Strength Between Coil And Contacts

1000 Vrms

Terminal Sayısı

6

Operate Time

5ms

Contact Rating Current

1A

Coil Voltage

12VDC

Must Release Voltage

1.2VDC

RoHS Durumu

RoHS Compliant

Weight

2g

Seal Rating

Sealed - Fully

Must Operate Voltage

8.4VDC

Coil Type

Non Latching

Reference Standard

CSA; UL

Contact Voltageacmax

125V

Contactoutput Supply Type

AC/DC

Terminal Stili

PC Pin

Parça Durumu

Active

Pcb Hole Count

6

Dielectric Strength Between Open Contacts

500 Vrms

Seri

G5V-1

Electricallife

100000 Cycle(s)

Length Termination

0.0035 inch

Physical Dimension

12.5mm x 7.5mm x 10mm

Relay Type

General Purpose

Coilinput Supply Type

DC
