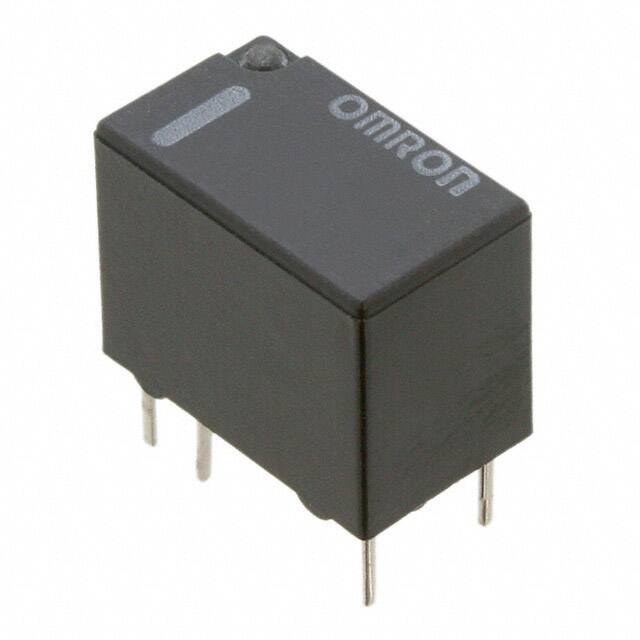

G5V-1-DC12

Teknik Özellikler

Max Voltage Rating Dc

60V

Kılıf / Paket

DIP

Genişlik

7.5mm

Weight

2g

Seal Rating

Sealed - Fully

Tip

Electromechanical

Reference Standard

CSA; UL

Coil Type

Non Latching

Çalışma Sıcaklığı

-40°C~70°C

Relay Action

MOMENTARY

Terminal

PC Pin

Relay Type

General Purpose

Depth

7.5mm

Coilresistance

960Ohm

Voltage Rated Dc

60V

Contact Currentacmax

0.5A

Coil Voltage

12VDC

Reach Svhc

No SVHC

Akım Değeri

2A

ECCN Kodu

EAR99

Must Release Voltage

1.2VDC

Coil Current

12.5mA

Montaj Tipi

Through Hole

Max Voltage Rating Ac

125V

Contact Materials

Silver (Ag), Gold (Au)

Ambalaj

Tube

Nem Hassasiyeti (MSL)

Not Applicable

Pcb Hole Count

6

Parça Durumu

Active

Uzunluk

12.5mm

Coil Power

150mW

Terminal Stili

PC Pin

Ambient Temperature Range High

70°C

RoHS Durumu

RoHS Compliant

Onay Kuruluşu

CSA, UL

Power Rating

150mW

Power Consumption

150mW

Must Operate Voltage

9.6VDC

Sealing

PLASTIC SEALED

Fabrika Tedarik Süresi

14 Weeks
