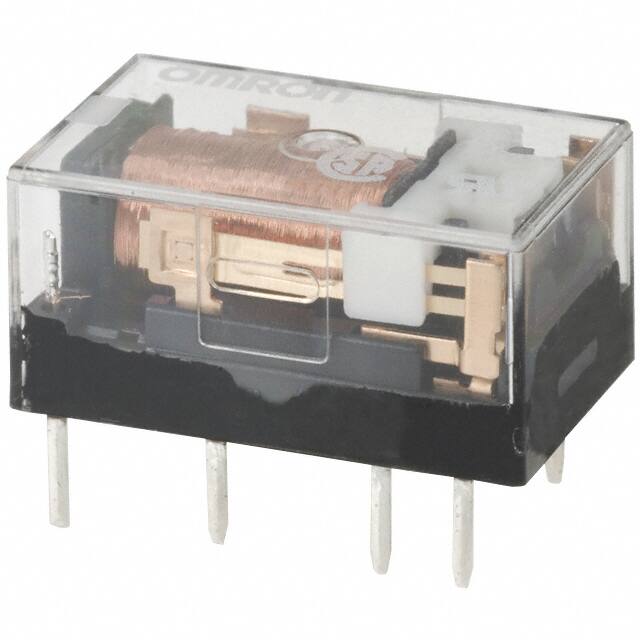

G5A-237P-DC24

Teknik Özellikler

Max Voltage Rating Dc

125V

REACH Uyumluluk Kodu

unknown

Parça Durumu

Obsolete

Contactoutput Supply Type

AC/DC

Terminal Stili

PC Pin

Coil Power

200mW

Uzunluk

16mm

Weight

3.12g

RoHS Durumu

RoHS Compliant

Coil Type

Non Latching

Reference Standard

CSA; UL

Power Consumption

200mW

Must Operate Voltage

16.8VDC

Çalışma Sıcaklığı

-40°C~70°C

Contact Ac Max Rating R Load

.5A@60VAC

Relay Action

MOMENTARY

Terminal

PC Pin

Seri

G5A

Max Current Rating

1A

Pin Sayısı

8

Relay Type

General Purpose

Coilinput Supply Type

DC

Depth

9.9mm

Kontak Formu

DPDT (2 Form C)

Release Time

5.5 ms

Coilresistance

2.88kOhm

Kurşunsuz

Lead Free

Montaj

Through Hole

Voltage Rated Ac

125V

Switching Voltage

125VAC 125VDC -Max

Throw Configuration

DPDT

Contact Rating Current

1A

Coil Voltage

24VDC

Operate Time

5ms

Akım Değeri

8.3mA

Yayın Yılı

2002

ECCN Kodu

EAR99

Must Release Voltage

2.4VDC

Montaj Tipi

Through Hole

Coil Voltage Dc

24V
