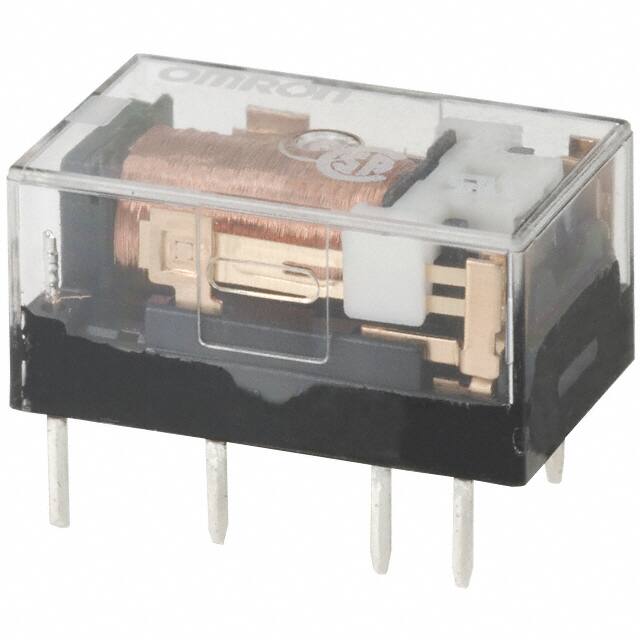

G5A-237P-DC12

Teknik Özellikler

Contact Ac Max Rating R Load

.5A@60VAC

Terminal

PC Pin

Relay Action

MOMENTARY

Çalışma Sıcaklığı

-40°C~70°C

Coilinput Supply Type

DC

Relay Type

General Purpose

Pin Sayısı

8

Max Current Rating

1A

Seri

G5A

Parça Durumu

Obsolete

Contactoutput Supply Type

AC/DC

Terminal Stili

PC Pin

Coil Power

200mW

Max Voltage Rating Dc

125V

REACH Uyumluluk Kodu

unknown

Power Consumption

200mW

Must Operate Voltage

8.4VDC

Coil Type

Non Latching

Reference Standard

CSA; UL

RoHS Durumu

RoHS Compliant

Must Release Voltage

1.2VDC

ECCN Kodu

EAR99

Yayın Yılı

2002

Coil Voltage

12VDC

Operate Time

5ms

Nem Hassasiyeti (MSL)

Not Applicable

Ambalaj

Tube

Max Voltage Rating Ac

125V

Contact Materials

Silver (Ag), Gold (Au)

Contact Currentdcmax

1A

Coil Current

16.7mA

Montaj Tipi

Through Hole

Coil Voltage Dc

12V

Kurşunsuz

Lead Free

Montaj

Through Hole

Coilresistance

720Ohm

Release Time

5.5 ms

Body Length Or Diameter

16mm

Body Breadth

9.9 mm

Kontak Formu

DPDT (2 Form C)
