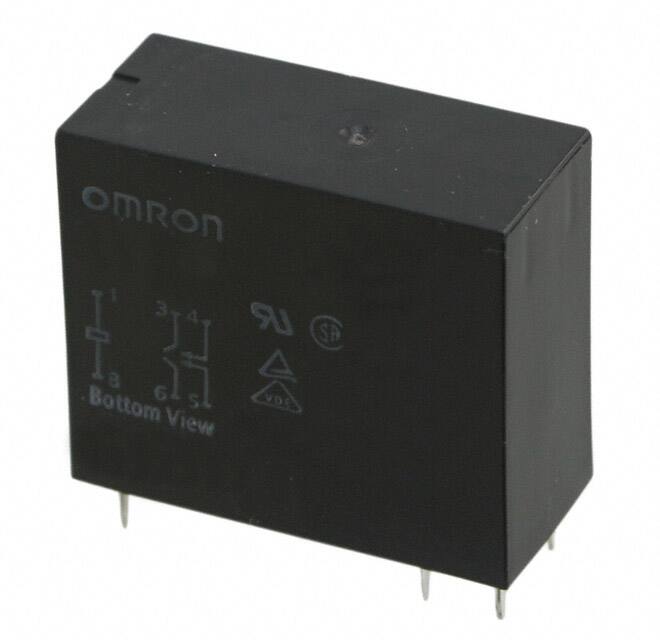

G2R-2A4-DC24

Teknik Özellikler

Parça Durumu

Active

Operate Time

15ms

Must Operate Voltage

16.8VDC

Throw Configuration

DPST

Terminal Sayısı

6

Body Height

25.5mm

Switching Voltage

380VAC 125VDC -Max

Contactoutput Supply Type

AC/DC

Montaj Tipi

Through Hole

Dielectric Strength Between Coil And Contacts

5000 Vrms

Physical Dimension

29mm x 13mm x 25.5mm

Body Breadth

13 mm

Dielectric Strength Between Open Contacts

1000 Vrms

Coil Current

21.8mA

Fabrika Tedarik Süresi

35 Weeks

Kılıf / Paket

DIP

Seri

G2R

Coil Voltage Dc

24V

Relay Action

MOMENTARY

Kontak Formu

DPST-NO (2 Form A)

Nem Hassasiyeti (MSL)

Not Applicable

Kurşunsuz Kodu

yes

Coil Voltage

24VDC

RoHS Durumu

RoHS Compliant

Montaj

Through Hole

Yayın Yılı

2002

Release Time

5ms

Max Voltage Rating Dc

125V

Contact Ac Max Rating R Load

5A@250VAC

Relay Form

1 FORM C

Çalışma Sıcaklığı

-40°C~70°C

Pin Sayısı

6

Terminal

PC Pin

Input Switching Control Type

Random

Contact Materials

Silver Alloy

Electricallife

100000 Cycle(s)

Seal Rating

Sealed - Fully

Terminal Stili

PC Pin

Must Release Voltage

3.6VDC

Contact Currentdcmax

5A
