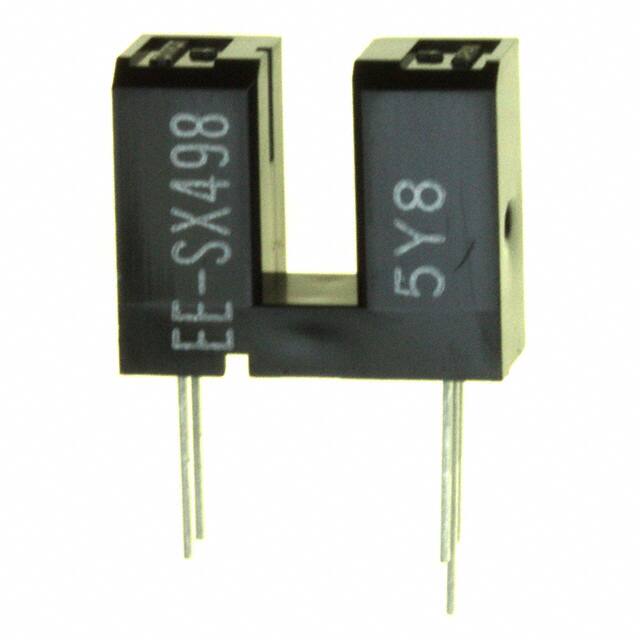

EE-SX498

Teknik Özellikler

Kurşunsuz

Lead Free

Output Configuration

NPN - Open Collector/Light-ON

Additional Feature

CMOS COMPATIBLE

Algılama Mesafesi

0.118 (3mm)

Çalışma Sıcaklığı

-40°C~75°C TA

Reach Svhc

Unknown

Besleme Gerilimi

4.5V~16V

Kılıf / Paket

PCB Mount

Fabrika Tedarik Süresi

9 Weeks

Parça Durumu

Active

Reverse Breakdown Voltage

4V

Forward Voltage

1.2V

Terminal

Solder

Propagation Delay

20 μs

Genişlik

12.2mm

Operating Supply Current

3.2mA

Pin Sayısı

5

Sensing Method

Through-Beam

Hysteresis Rationom

0.15

Collector Emitter Voltage Vceo

28V

Yükseklik

10mm

Power Dissipation

250mW

Max Output Current

16mA

Montaj

PCB, Through Hole

Nem Hassasiyeti (MSL)

Not Applicable

Yayın Yılı

2002

Operating Supply Voltage

16V

Number Of Channels

1

Kurşunsuz Kodu

yes

Max Power Dissipation

250mW

Fall Time Typ

3 μs

Rise Time

20μs

Max Collector Current

16mA

Low Level Output Current

16mA

Montaj Tipi

Through Hole

RoHS Durumu

RoHS Compliant

Contact Current Rating

50mA

Peak Reverse Current

10nA

Output Current

16mA

Optoelectronic Device Type

LOGIC OUTPUT SLOTTED SWITCH
