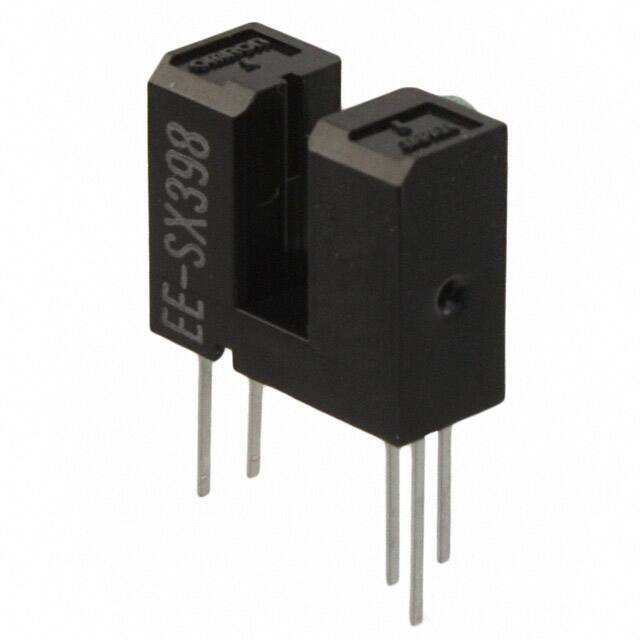

EE-SX398

Teknik Özellikler

Terminal

Solder

Forward Voltage

1.2V

Reverse Breakdown Voltage

4V

Input Current

50mA

Wavelength Peak

870 nm

Propagation Delay

20 μs

Genişlik

12.2mm

JESD-609 Kodu

e3

Sensing Method

Through-Beam

Pin Sayısı

5

Hysteresis Rationom

0.15

Operating Supply Current

3.2mA

Yükseklik

10mm

Collector Emitter Voltage Vceo

28V

Output Configuration

NPN - Open Collector/Dark-ON

Kurşunsuz

Lead Free

Reach Svhc

Unknown

Çalışma Sıcaklığı

-40°C~75°C TA

Besleme Gerilimi

4.5V~16V

Algılama Mesafesi

0.118 (3mm)

Additional Feature

CMOS COMPATIBLE

Fabrika Tedarik Süresi

8 Weeks

Parça Durumu

Active

Kılıf / Paket

PCB Mount

Montaj Tipi

Through Hole

Peak Reverse Current

10nA

RoHS Durumu

RoHS Compliant

Optoelectronic Device Type

LOGIC OUTPUT SLOTTED SWITCH

Reverse Voltage Dc

4V

Uzunluk

5mm

Fonksiyon Sayısı

1

Slot Widthnom

3mm

Forward Current

50mA

Max Output Current

16mA

Montaj

PCB, Through Hole

Power Dissipation

250mW

Nem Hassasiyeti (MSL)

Not Applicable

Operating Supply Voltage

16V

Yayın Yılı

2003

Number Of Channels

1
