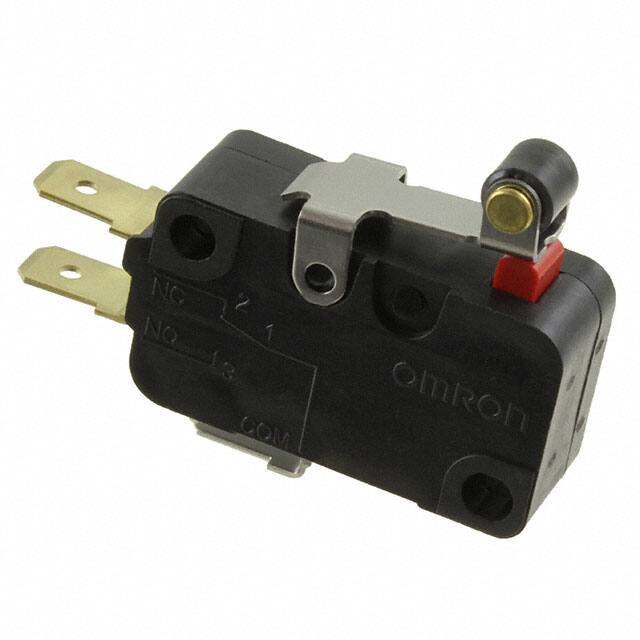

D3V-65M-1C24

Teknik Özellikler

HTS Kodu

8536.50.70.00

Body Length Or Diameter

27.8mm

ECCN Kodu

EAR99

Switch Function

On-Mom

Actuator Type

Lever, Roller

Circuit

SPDT

Fabrika Tedarik Süresi

15 Weeks

Terminal Stili

Quick Connect - 0.187 (4.7mm)

Actuator Travel

2.4 mm

Differential Travel

0.025 (0.6mm)

Contact Currentacmax

6A

Parça Durumu

Active

Overtravel

0.031 (0.79mm)

Voltage Rated Ac

250V

Mechanical Life

10,000,000 Cycles

Montaj Tipi

Chassis Mount

Contact Currentdcmax

6A

Switch Type

SNAP ACTING/LIMIT SWITCH

Current Rating Amps

6A AC/DC

RoHS Durumu

RoHS Compliant

Çalışma Sıcaklığı

-25°C~105°C

Max Voltage Rating Dc

250V

Voltage Rated Dc

30V

Seri

D3V

Contact Materials

Silver

Sealing

IP00

Ingress Protection

IP40

Yayın Yılı

2002

Contact Dc Max Rating R Load

6A@8VDC

Akım Değeri

6A

Body Breadth

10.3 mm

Ambalaj

Bulk

Nem Hassasiyeti (MSL)

1 (Unlimited)

Electricallife

500,000 Cycles

Kurşunsuz Kodu

yes

Pretravel

0.063 (1.6mm)

Montaj

Chassis Mount, Screw

Terminal

Quick Connect

Contact Ac Max Rating R Load

6A@250VAC

Operating Position

0.815 (20.7mm)
