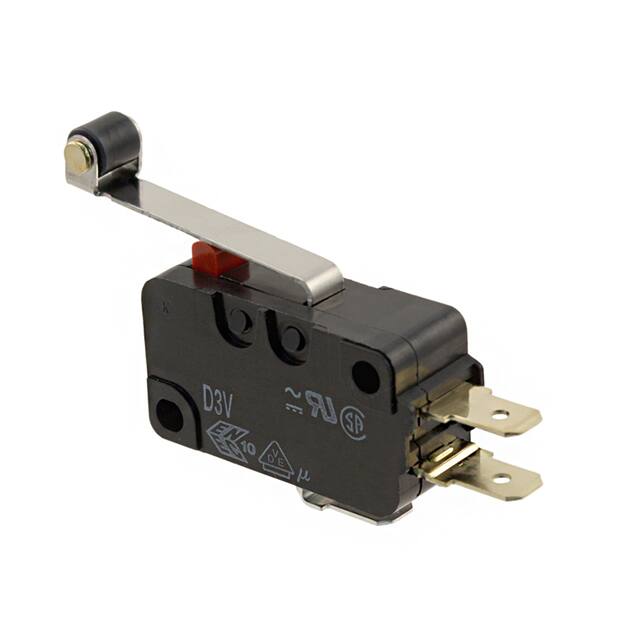

D3V-015-1A3

Teknik Özellikler

Voltage Rated Ac

125V

Overtravel

0.031 (0.79mm)

Switch Type

SNAP ACTING/LIMIT SWITCH

Yayın Yılı

2002

Voltage Rated Dc

30V

Montaj

Chassis Mount

Mechanical Life

10,000,000 Cycles

Akım Değeri

100mA

RoHS Durumu

RoHS Compliant

Pretravel

0.063 (1.6mm)

Release Force

6.118gf

Differential Travel

0.025 (0.6mm)

Body Length Or Diameter

27.8mm

Seri

D3V

Operating Force

60gf

Fabrika Tedarik Süresi

15 Weeks

Kurşunsuz Kodu

yes

ECCN Kodu

EAR99

Ambalaj

Bulk

Contact Dc Max Rating R Load

.1A@8VDC

Actuator Travel

2.4 mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Currentacmax

0.1A

Montaj Tipi

Chassis Mount

Contact Currentdcmax

0.1A

Terminal Stili

Solder, Quick Connect - 0.187 (4.7mm)

Sealing

IP00

HTS Kodu

8536.50.70.00

Actuator Type

Lever, Roller

Contact Voltagedcmax

8V

Circuit

SPDT

Operating Position

0.815 (20.7mm)

Pretravelmax

1.6 mm

Body Breadth

10.3 mm

Ingress Protection

IP40

Çalışma Sıcaklığı

-25°C~85°C

Parça Durumu

Active

Contact Ac Max Rating R Load

.1A@125VAC

Current Rating Amps

100mA AC/DC

Electricallife

500,000 Cycles
