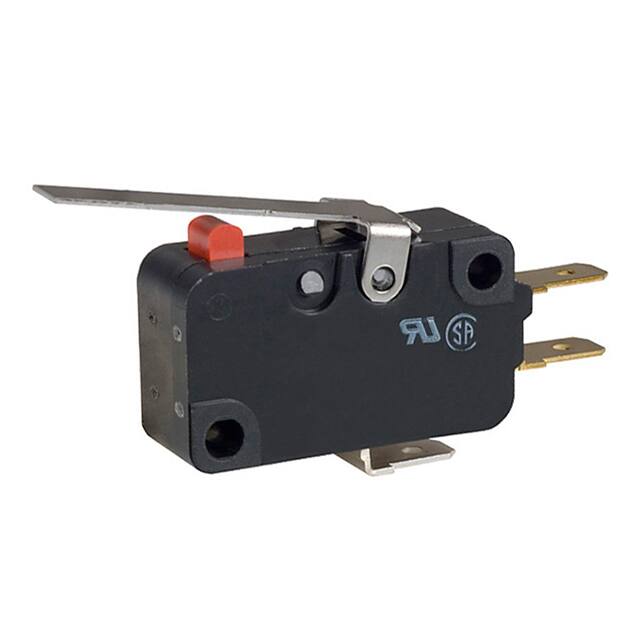

D3V-013M-1A3

Teknik Özellikler

Terminal Stili

Solder, Quick Connect - 0.187 (4.7mm)

Montaj Tipi

Chassis Mount

Contact Currentdcmax

0.1A

Body Breadth

10.3 mm

Ingress Protection

IP40

Pretravelmax

9 mm

HTS Kodu

8536.50.70.00

Actuator Type

Lever, Straight

Circuit

SPDT

Operating Position

0.600 (15.2mm)

Max Voltage Rating Ac

125V

Sealing

IP00

Current Rating Amps

100mA AC/DC

Parça Durumu

Active

Contact Ac Max Rating R Load

.1A@125VAC

Çalışma Sıcaklığı

-25°C~85°C

Switch Function

On-Mom

Radyasyon Dayanımı

No

Terminal

Solder

Electricallife

500,000 Cycles

Body Height

15.9mm

Contact Materials

Gold

Mechanical Life

10,000,000 Cycles

Akım Değeri

100mA

RoHS Durumu

RoHS Compliant

Yayın Yılı

2002

Voltage Rated Dc

30V

Montaj

Chassis Mount, Screw, Solder

Orientation

Straight

Switch Type

SNAP ACTING/LIMIT SWITCH

Voltage Rated Ac

125V

Overtravel

0.125 (3.2mm)

Body Length Or Diameter

27.8mm

Max Voltage Rating Dc

30V

Differential Travel

0.110 (2.8mm)

Pretravel

0.354 (9.0mm)

Fabrika Tedarik Süresi

14 Weeks

Operating Force

20gf

Seri

D3V

Nem Hassasiyeti (MSL)

Not Applicable
