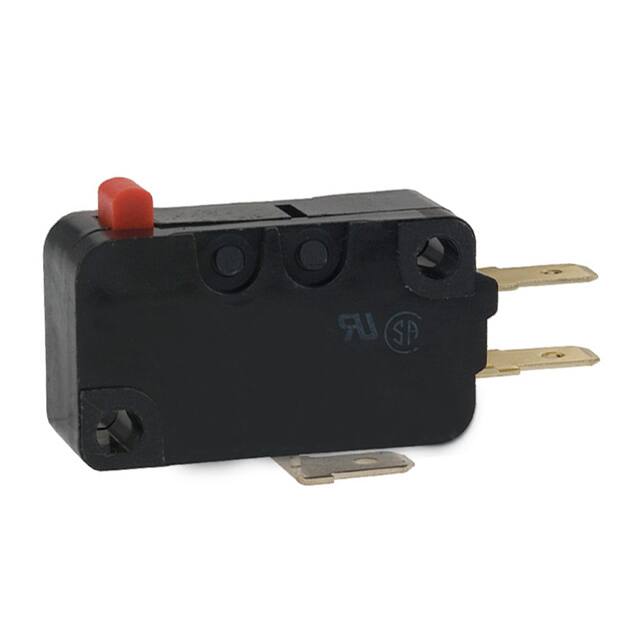

D3V-01-1C22

Teknik Özellikler

Sealing

IP00

Circuit

SPDT

Operating Position

0.579 (14.7mm)

Max Voltage Rating Ac

125V

HTS Kodu

8536.50.70.00

Actuator Type

Round (Pin Plunger)

Weight

6.2g

Pretravelmax

1.2 mm

Body Breadth

10.3 mm

Ingress Protection

IP40

Contact Currentdcmax

0.1A

Montaj Tipi

Chassis Mount

Terminal Stili

Quick Connect - 0.187 (4.7mm)

Body Height

15.9mm

Contact Materials

Gold

Electricallife

500,000 Cycles

Terminal

Quick Connect

Radyasyon Dayanımı

No

Switch Function

On-Mom

Çalışma Sıcaklığı

-25°C~85°C

Contact Ac Max Rating R Load

.1A@125VAC

Parça Durumu

Active

Current Rating Amps

100mA AC/DC

Pretravel

0.047 (1.2mm)

Release Force

3.059gf

Differential Travel

0.016 (0.4mm)

Max Voltage Rating Dc

30V

Body Length Or Diameter

27.8mm

Voltage Rated Ac

125V

Overtravel

0.040 (1.0mm)

Orientation

Straight

Switch Type

SNAP ACTING/LIMIT SWITCH

Montaj

Chassis Mount, Screw

Yayın Yılı

2002

Voltage Rated Dc

30V

RoHS Durumu

RoHS Compliant

Akım Değeri

100mA

Mechanical Life

10,000,000 Cycles

ECCN Kodu

EAR99

Kurşunsuz Kodu

yes
