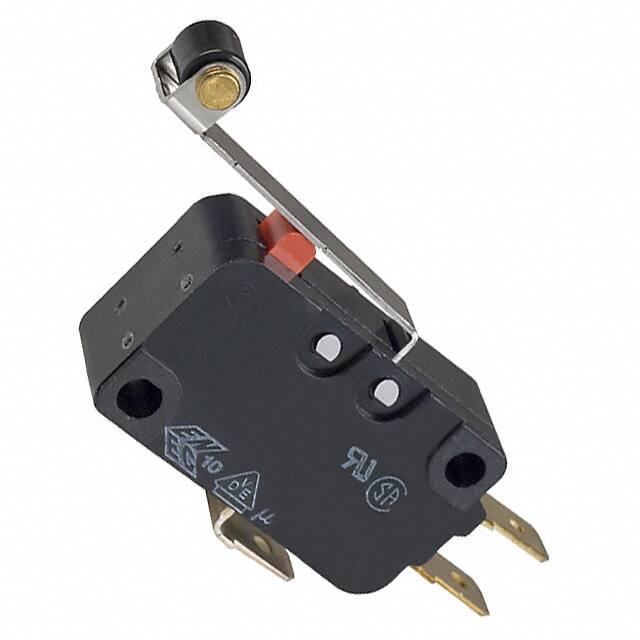

D3V-01-1A2

Teknik Özellikler

Seri

D3V

Operating Force

25gf

Fabrika Tedarik Süresi

15 Weeks

ECCN Kodu

EAR99

Kurşunsuz Kodu

yes

Actuator Travel

2.2 mm

Ambalaj

Bulk

Contact Dc Max Rating R Load

.1A@8VDC

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Currentacmax

0.1A

Voltage Rated Ac

125V

Overtravel

0.040 (1.0mm)

Switch Type

SNAP ACTING/LIMIT SWITCH

Montaj

Chassis Mount

Yayın Yılı

2002

Voltage Rated Dc

30V

RoHS Durumu

RoHS Compliant

Mechanical Life

10,000,000 Cycles

Akım Değeri

100mA

Pretravel

0.047 (1.2mm)

Release Force

3.059gf

Differential Travel

0.016 (0.4mm)

Body Length Or Diameter

27.8mm

Çalışma Sıcaklığı

-25°C~85°C

Contact Ac Max Rating R Load

.1A@125VAC

Parça Durumu

Active

Current Rating Amps

100mA AC/DC

Body Height

15.9mm

Electricallife

500,000 Cycles

Terminal

Solder

Switch Function

On-Mom

Contact Currentdcmax

0.1A

Montaj Tipi

Chassis Mount

Terminal Stili

Solder, Quick Connect - 0.187 (4.7mm)

Sealing

IP00

Circuit

SPDT

Operating Position

0.579 (14.7mm)

HTS Kodu

8536.50.70.00

Actuator Type

Round (Pin Plunger)

Contact Voltagedcmax

8V
