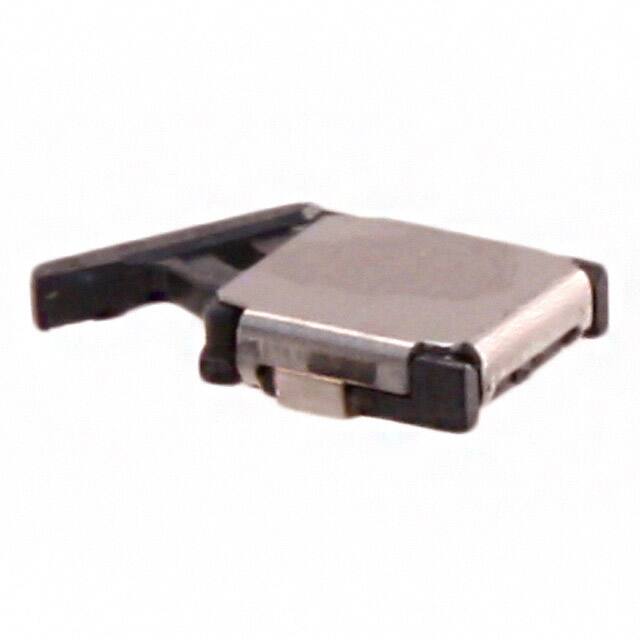

D3SH-A0L

Teknik Özellikler

Operating Position

0.197 (5.0mm)

Circuit

SPST-NO

Actuator Type

Angled Toggle (Detector)

HTS Kodu

8536.50.70.00

Contact Current Rating

1mA

Terminal Stili

SMD (SMT) Tab

Contact Currentdcmax

0.001A

Genişlik

3mm

Montaj Tipi

Surface Mount, Right Angle

Terminal Sayısı

2

Electricallife

100,000 Cycles

Usage Level

Industrial grade

Throw Configuration

SPST

Switch Function

Off-Mom

Çalışma Sıcaklığı

-25°C~85°C

Current Rating Amps

1mA DC

Özellikler

Left Operating Lever

Parça Durumu

Active

Contact Resistance

3Ohm

Insulation Resistance

100MOhm

Max Voltage Rating Dc

5V

Body Length Or Diameter

3.1mm

Switch Type

SNAP ACTING/LIMIT SWITCH

Orientation

Right Angle

RoHS Durumu

RoHS Compliant

Akım Değeri

1mA

Mechanical Life

150,000 Cycles

Actuator Length

2.3mm

Montaj

Surface Mount

Voltage Rated Dc

30V

Yayın Yılı

2006

Actuator Travel

3.8 mm

Contact Dc Max Rating R Load

.001A@5VDC

Ambalaj

Tape & Reel (TR)

ECCN Kodu

EAR99

Kurşunsuz Kodu

yes

Nem Hassasiyeti (MSL)

1 (Unlimited)

Seri

D3SH

Yükseklik

900μm

Operating Force

31gf
