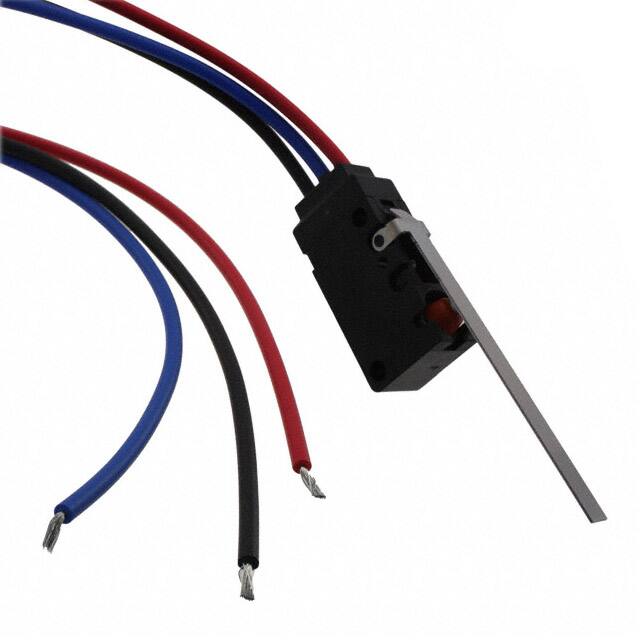

D2VW-5L1B-1

Teknik Özellikler

Montaj Tipi

Chassis Mount

Mechanical Life

10,000,000 Cycles

Fabrika Tedarik Süresi

18 Weeks

Akım Değeri

5A

Differential Travel

0.080 (2.0mm)

Actuator Type

Lever, Straight

Switch Function

On-Mom

Parça Durumu

Active

Reach Svhc

Unknown

Operating Position

0.600 (15.2mm)

Electricallife

100,000 Cycles

Terminal

Solder

Max Voltage Rating Ac

250V

Circuit

SPDT

Pretravel

0.354 (9.0mm)

Çalışma Sıcaklığı

-40°C~85°C

Current Rating Amps

5A AC/DC

Operating Force

60gf

Nem Hassasiyeti (MSL)

1 (Unlimited)

Yayın Yılı

2004

Ratings

Dust Tight, IP67, Waterproof

Voltage Rated Dc

30V

Genişlik

10.3mm

Overtravel

0.125 (3.2mm)

Release Force

5.099gf

Terminal Stili

Solder, Quick Connect - 0.187 (4.7mm)

Orientation

Straight

Voltage Rated Ac

125V

Ingress Protection

IP67 - Dust Tight, Waterproof

Seri

D2VW

Ambalaj

Bulk

Max Voltage Rating Dc

125V

RoHS Durumu

RoHS Compliant

Contact Current Rating

5A

Montaj

Chassis Mount, Screw, Solder

ECCN Kodu

EAR99

Contact Materials

Silver

Insulation Resistance

100MOhm

Radyasyon Dayanımı

No

Switch Type

SNAP ACTING/LIMIT SWITCH
