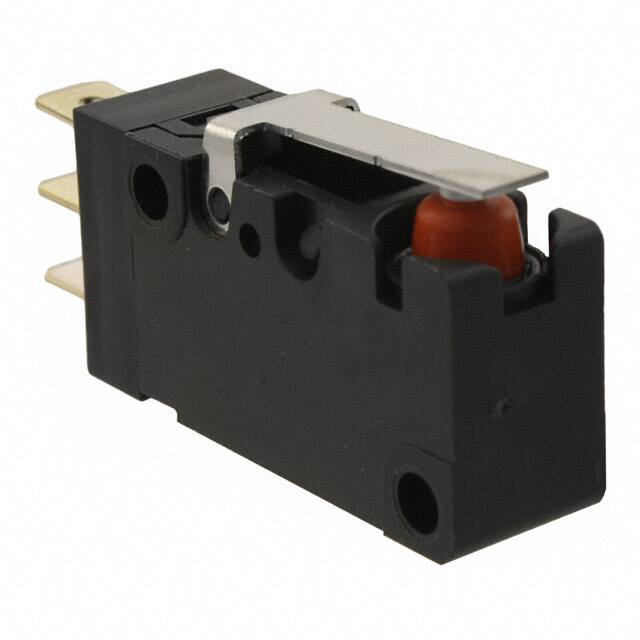

D2VW-5L1A-1HS

Teknik Özellikler

Voltage Rated Dc

30V

Ratings

IP67

Kurşunsuz Kodu

yes

Overtravel

0.030 (0.76mm)

Orientation

Straight

HTS Kodu

8536.50.70.00

Contact Ac Max Rating R Load

5A@250VAC

Contact Currentacmax

5A

ECCN Kodu

EAR99

Montaj

Chassis Mount, Panel, Screw, Solder

Seri

D2VW

Ingress Protection

IP67 - Dust Tight, Waterproof

Body Height

33mm

Mechanical Life

10,000,000 Cycles

Parça Durumu

Active

Body Breadth

10.3 mm

Actuator Type

Lever, Straight

Differential Travel

0.020 (0.5mm)

Circuit

SPDT

Operating Force

200gf

JESD-609 Kodu

e4

Contact Dc Max Rating R Load

5A@30VDC

Current Rating Amps

5A AC/DC

Yayın Yılı

2004

Pretravelmax

1.6 mm

Terminal Stili

Solder, Quick Connect - 0.187 (4.7mm)

Sealing

IP50

Release Force

20gf

Radyasyon Dayanımı

No

Switch Type

SNAP ACTING/LIMIT SWITCH

Contact Materials

Silver

RoHS Durumu

RoHS Compliant

Ambalaj

Tray

Max Voltage Rating Dc

125V

Voltage Rated Ac

250V

Actuator Travel

2.4 mm

Body Length Or Diameter

15.9mm

Fabrika Tedarik Süresi

18 Weeks

Montaj Tipi

Chassis Mount

Switch Function

On-Mom
