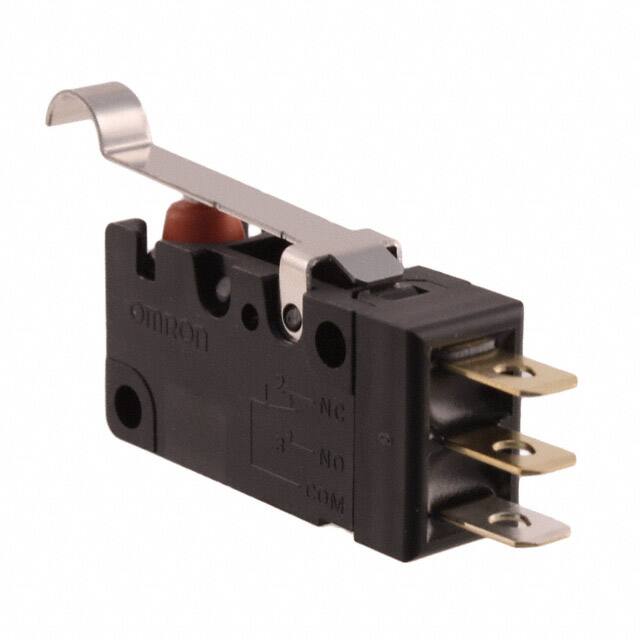

D2VW-01L3-1HS

Teknik Özellikler

Body Breadth

10.3 mm

Parça Durumu

Active

Actuator Type

Lever, Simulated Roller

Differential Travel

0.031 (0.8mm)

Mechanical Life

10,000,000 Cycles

Operating Force

120gf

Current Rating Amps

100mA AC/DC

Contact Dc Max Rating R Load

.1A@30VDC

Circuit

SPDT

Overtravel

0.062 (1.6mm)

Kurşunsuz Kodu

yes

Ratings

Dust Tight, IP67, Waterproof

Voltage Rated Dc

30V

ECCN Kodu

EAR99

Montaj

Chassis Mount, Panel, Screw, Solder

Contact Currentacmax

0.1A

Ingress Protection

IP67 - Dust Tight, Waterproof

Body Height

33mm

Seri

D2VW

HTS Kodu

8536.50.70.00

Contact Ac Max Rating R Load

.1A@125VAC

Orientation

Straight

Switch Function

On-Mom

Akım Değeri

100mA

Body Length Or Diameter

15.9mm

Actuator Travel

5.6 mm

Montaj Tipi

Chassis Mount

Fabrika Tedarik Süresi

13 Weeks

Nem Hassasiyeti (MSL)

1 (Unlimited)

Pretravel

0.157 (4.0mm)

Max Voltage Rating Ac

125V

Çalışma Sıcaklığı

-40°C~85°C

Contact Currentdcmax

0.1A

Operating Position

0.738 (18.7mm)

Kurşunsuz

Lead Free

Terminal

Solder

Electricallife

1,000,000 Cycles

Pretravelmax

4 mm

Yayın Yılı

2004

Contact Materials

Gold
