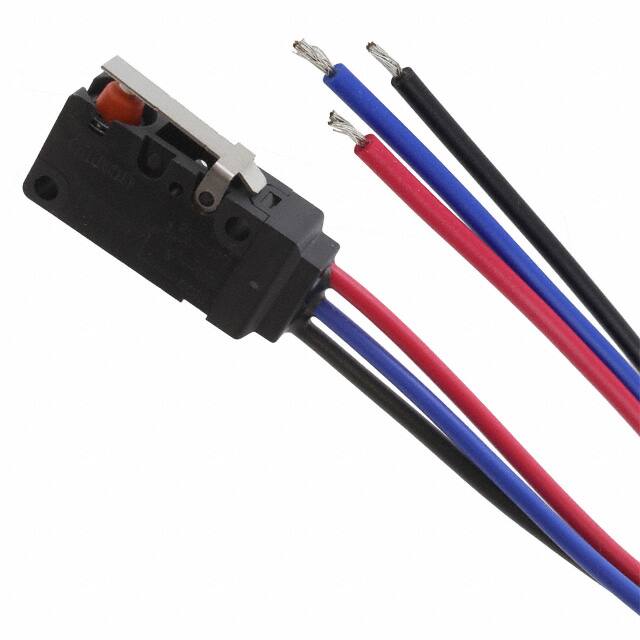

D2VW-01L1A-1MS

Teknik Özellikler

Switch Type

SNAP ACTING/LIMIT SWITCH

Contact Currentacmax

0.1A

RoHS Durumu

RoHS Compliant

Montaj

Chassis Mount, Panel, Screw, Wire

Contact Materials

Gold

ECCN Kodu

EAR99

Max Voltage Rating Dc

30V

Ambalaj

Tray

Seri

D2VW

Body Height

33mm

Ingress Protection

IP67 - Dust Tight, Waterproof

Voltage Rated Ac

125V

Orientation

Straight

Terminal Stili

Wire Leads

Contact Ac Max Rating R Load

.1A@125VAC

HTS Kodu

8536.50.70.00

Release Force

20gf

Pretravelmax

1.6 mm

Overtravel

0.030 (0.76mm)

Voltage Rated Dc

30V

Ratings

Dust Tight, IP67, Waterproof

Kurşunsuz Kodu

yes

Yayın Yılı

2004

REACH Uyumluluk Kodu

unknown

Nem Hassasiyeti (MSL)

Not Applicable

Operating Force

200gf

Contact Dc Max Rating R Load

.1A@30VDC

Current Rating Amps

100mA AC/DC

Contact Currentdcmax

0.1A

Çalışma Sıcaklığı

-40°C~85°C

Max Voltage Rating Ac

125V

Pretravel

0.063 (1.6mm)

Circuit

SPDT

Electricallife

1,000,000 Cycles

Terminal

Wire Leads

Kurşunsuz

Lead Free

Operating Position

0.600 (15.2mm)

Parça Durumu

Active

Body Breadth

10.3 mm

Switch Function

On-Mom
