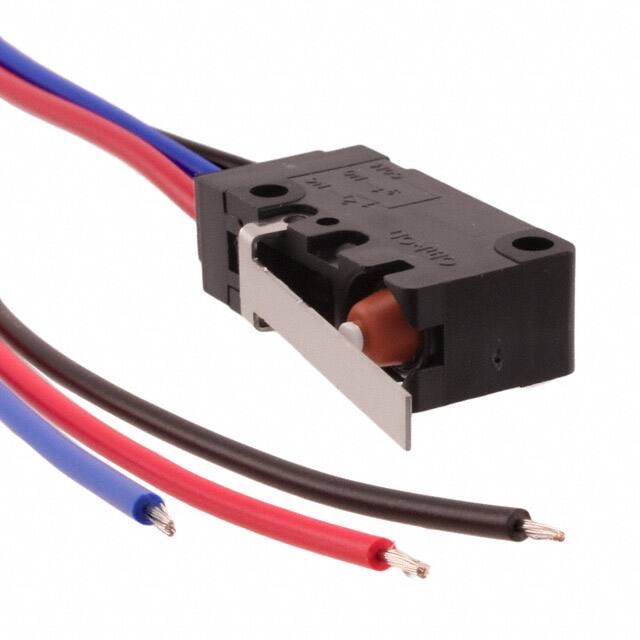

D2VW-01L1-1MS

Teknik Özellikler

Onay Kuruluşu

IEC

Orientation

Straight

HTS Kodu

8536.50.70.00

Terminal Stili

Wire Leads

Release Force

15gf

Switch Type

SNAP ACTING/LIMIT SWITCH

Contact Materials

Gold

ECCN Kodu

EAR99

RoHS Durumu

RoHS Compliant

Montaj

Chassis Mount, Panel, Screw, Wire

Contact Current Rating

100mA

Seri

D2VW

Ambalaj

Tray

Max Voltage Rating Dc

30V

Actuator Material

Stainless Steel

Voltage Rated Ac

125V

Ingress Protection

IP67 - Dust Tight, Waterproof

Depth

10.3mm

Voltage Rated Dc

30V

Kurşunsuz Kodu

yes

Ratings

Dust Tight, IP67, Waterproof

Yayın Yılı

2004

Pretravelmax

4 mm

Overtravel

0.062 (1.6mm)

Genişlik

33mm

Çalışma Sıcaklığı

-40°C~85°C

Circuit

SPDT

Pretravel

0.157 (4.0mm)

Max Voltage Rating Ac

125V

Terminal

Wire Leads

Electricallife

1,000,000 Cycles

Operating Position

0.600 (15.2mm)

Kurşunsuz

Lead Free

Operating Force

120gf

Nem Hassasiyeti (MSL)

Not Applicable

REACH Uyumluluk Kodu

unknown

Current Rating Amps

100mA AC/DC

Number Of Poles

1

Fabrika Tedarik Süresi

10 Weeks

Mechanical Life

10,000,000 Cycles
