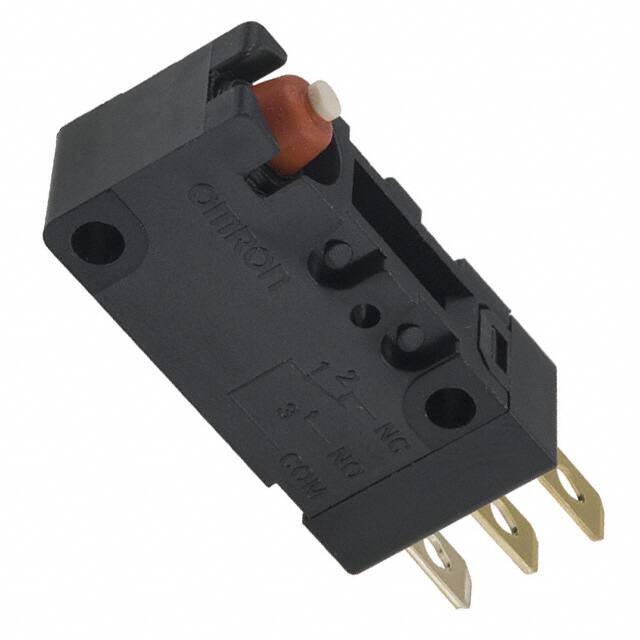

D2VW-01-1

Teknik Özellikler

Contact Materials

Gold

ECCN Kodu

EAR99

RoHS Durumu

RoHS Compliant

Contact Current Rating

100mA

Montaj

Chassis Mount, Panel, Screw, Solder

Switch Type

SNAP ACTING/LIMIT SWITCH

Ingress Protection

IP67 - Dust Tight, Waterproof

Voltage Rated Ac

125V

Max Voltage Rating Dc

30V

Ambalaj

Bulk

Seri

D2VW

Terminal Stili

Solder, Quick Connect - 0.187 (4.7mm)

Orientation

Straight

Kılıf / Paket

100

Release Force

30gf

Weight

7g

Overtravel

0.040 (1.0mm)

Ratings

Dust Tight, IP67, Waterproof

Voltage Rated Dc

30V

Yayın Yılı

2004

Operating Force

200gf

Nem Hassasiyeti (MSL)

1 (Unlimited)

Current Rating Amps

100mA AC/DC

Pretravel

0.047 (1.2mm)

Circuit

SPDT

Max Voltage Rating Ac

125V

Çalışma Sıcaklığı

-40°C~85°C

Operating Position

0.579 (14.7mm)

Terminal

Solder

Electricallife

1,000,000 Cycles

Switch Function

On-Mom

Reach Svhc

Unknown

Parça Durumu

Active

Akım Değeri

100mA

Actuator Type

Round (Pin Plunger)

Differential Travel

0.016 (0.4mm)

Montaj Tipi

Chassis Mount

Fabrika Tedarik Süresi

13 Weeks

Mechanical Life

10,000,000 Cycles
