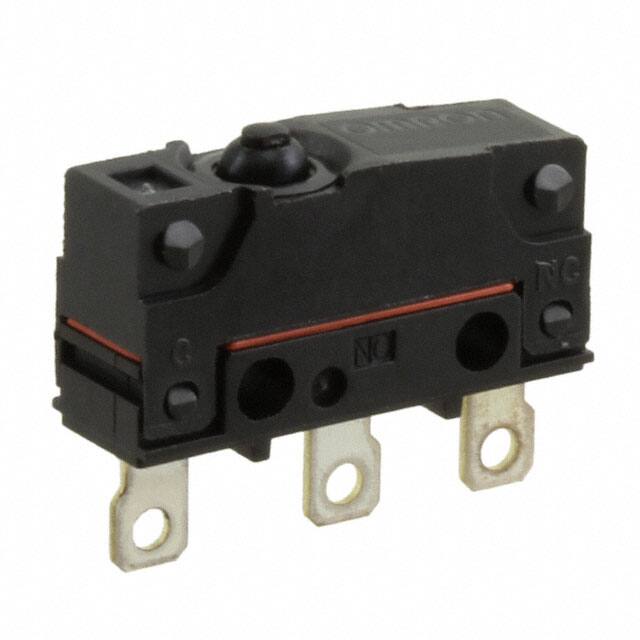

D2SW-P2H

Teknik Özellikler

Akım Değeri

2A

Differential Travel

0.006 (0.15mm)

Actuator Type

Round (Pin Plunger)

Body Breadth

6.4 mm

Switch Function

On-Mom

Parça Durumu

Active

Reach Svhc

Unknown

Montaj Tipi

Chassis Mount

Fabrika Tedarik Süresi

19 Weeks

Mechanical Life

1,000,000 Cycles

Body Length Or Diameter

19.8mm

Actuator Travel

1 mm

Current Rating Amps

2A AC/DC

Contact Dc Max Rating R Load

2A@30VDC

Operating Force

183gf

Nem Hassasiyeti (MSL)

Not Applicable

Operating Position

0.330 (8.4mm)

Electricallife

50,000 Cycles

Terminal

Solder

Max Voltage Rating Ac

250V

Circuit

SPDT

Pretravel

0.024 (0.6mm)

Contact Currentdcmax

2A

Çalışma Sıcaklığı

-20°C~70°C

Overtravel

0.015 (0.4mm)

Pretravelmax

0.6 mm

Weight

2g

Yayın Yılı

2004

Ratings

Dust Tight, IP67, Waterproof

Voltage Rated Dc

30V

Body Height

11mm

Voltage Rated Ac

250V

Ingress Protection

IP67 - Dust Tight, Waterproof

Seri

D2SW-P

Ambalaj

Bulk

Max Voltage Rating Dc

30V

RoHS Durumu

RoHS Compliant

Contact Current Rating

2A

Montaj

Chassis Mount, Panel, Screw, Solder

ECCN Kodu

EAR99
