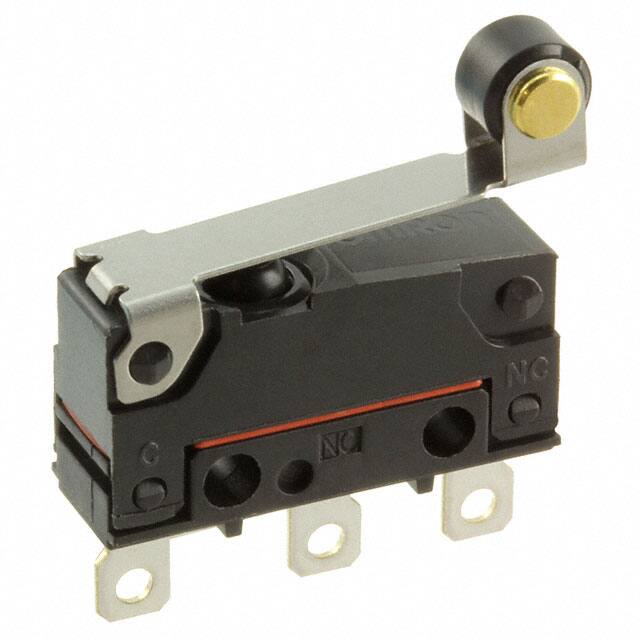

D2SW-P01L2H

Teknik Özellikler

Switch Type

SNAP ACTING/LIMIT SWITCH

Contact Currentacmax

0.1A

RoHS Durumu

RoHS Compliant

Contact Current Rating

100mA

Montaj

Chassis Mount, Screw, Solder

Contact Materials

Gold

ECCN Kodu

EAR99

Actuator Material

Polyacetal, Resin, Stainless Steel

Max Voltage Rating Dc

30V

Ambalaj

Bulk

Seri

D2SW-P

Body Height

11mm

Depth

6.4mm

Voltage Rated Ac

125V

Ingress Protection

IP67 - Dust Tight, Waterproof

Orientation

Straight

Terminal Stili

Solder Lug

Contact Ac Max Rating R Load

.1A@125VAC

HTS Kodu

8536.50.70.00

Release Force

5.099gf

Kılıf / Paket

100

Overtravel

0.030 (0.76mm)

Voltage Rated Dc

30V

Ratings

Dust Tight, IP67, Waterproof

Yayın Yılı

2004

Operating Force

61gf

Nem Hassasiyeti (MSL)

Not Applicable

Contact Dc Max Rating R Load

.1A@30VDC

Current Rating Amps

100mA AC/DC

Contact Currentdcmax

0.1A

Çalışma Sıcaklığı

-20°C~70°C

Max Voltage Rating Ac

125V

Circuit

SPDT

Electricallife

200,000 Cycles

Terminal

Solder

Operating Position

0.571 (14.5mm)

Max Current Rating

100mA

Parça Durumu

Active

Reach Svhc

Unknown

Switch Function

On-Mom
