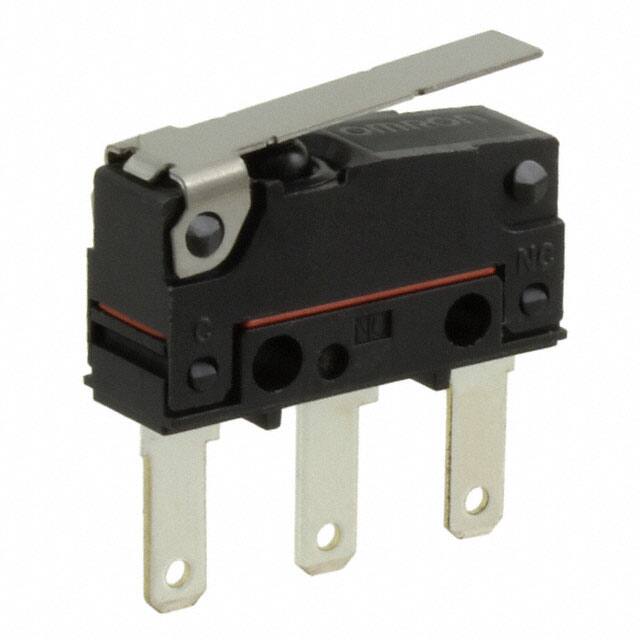

D2SW-P01L1T

Teknik Özellikler

Actuator Type

Lever, Straight

Differential Travel

0.031 (0.8mm)

Akım Değeri

100mA

Reach Svhc

Unknown

Parça Durumu

Active

Switch Function

On-Mom

Body Breadth

6.4 mm

Fabrika Tedarik Süresi

19 Weeks

Mechanical Life

1,000,000 Cycles

Montaj Tipi

Chassis Mount

Actuator Travel

0.8 mm

Body Length Or Diameter

19.8mm

Contact Dc Max Rating R Load

.1A@30VDC

Current Rating Amps

100mA AC/DC

Nem Hassasiyeti (MSL)

Not Applicable

Operating Force

61gf

Terminal

Quick Connect

Electricallife

200,000 Cycles

Operating Position

0.345 (8.8mm)

Çalışma Sıcaklığı

-20°C~70°C

Contact Currentdcmax

0.1A

Circuit

SPDT

Max Voltage Rating Ac

125V

Overtravel

0.030 (0.76mm)

Yayın Yılı

2004

Voltage Rated Dc

30V

Ratings

Dust Tight, IP67, Waterproof

Max Voltage Rating Dc

30V

Ambalaj

Bulk

Seri

D2SW-P

Ingress Protection

IP67 - Dust Tight, Waterproof

Voltage Rated Ac

125V

Body Height

11mm

Switch Type

SNAP ACTING/LIMIT SWITCH

Contact Currentacmax

0.1A

Contact Materials

Gold

ECCN Kodu

EAR99

RoHS Durumu

RoHS Compliant

Contact Current Rating

100mA

Montaj

Chassis Mount, Screw
