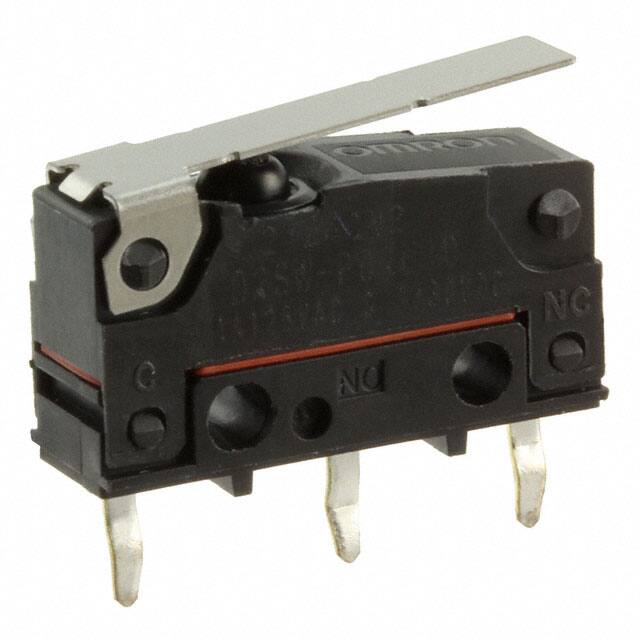

D2SW-P01L1B

Teknik Özellikler

Overtravel

0.030 (0.76mm)

Ratings

Dust Tight, IP67, Waterproof

Voltage Rated Dc

30V

Yayın Yılı

2004

Montaj

Screw, Through Hole

Contact Current Rating

100mA

RoHS Durumu

RoHS Compliant

ECCN Kodu

EAR99

Contact Materials

Gold

Contact Currentacmax

0.1A

Radyasyon Dayanımı

No

Switch Type

SNAP ACTING/LIMIT SWITCH

Body Height

11mm

Ingress Protection

IP67 - Dust Tight, Waterproof

Voltage Rated Ac

125V

Seri

D2SW-P

Ambalaj

Bulk

Max Voltage Rating Dc

30V

Contact Ac Max Rating R Load

.1A@125VAC

Terminal Stili

PC Pin

HTS Kodu

8536.50.70.00

Orientation

Straight

Release Force

5.099gf

Body Breadth

6.4 mm

Switch Function

On-Mom

Parça Durumu

Active

Reach Svhc

Unknown

Akım Değeri

100mA

Differential Travel

0.031 (0.8mm)

Actuator Type

Lever, Straight

Body Length Or Diameter

19.8mm

Actuator Travel

0.8 mm

Montaj Tipi

Through Hole

Fabrika Tedarik Süresi

19 Weeks

Mechanical Life

1,000,000 Cycles

Operating Force

61gf

Nem Hassasiyeti (MSL)

1 (Unlimited)

Current Rating Amps

100mA AC/DC

Contact Dc Max Rating R Load

.1A@30VDC

Max Voltage Rating Ac

125V
