Adet bazlı fiyat
- 1+ adet$5.31
- 10+ adet$5.01
- 100+ adet$4.72
- 500+ adet$4.45
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- Kurşunsuz Kodu
- yes
- Ratings
- Dust Tight, IP67, Waterproof
- Voltage Rated Dc
- 30V
- Yayın Yılı
- 2004
- Weight
- 2g
- Overtravel
- 0.040 (1.0mm)
- Contact Ac Max Rating R Load
- 3A@125VAC
- Terminal Stili
- Quick Connect - 0.110 (2.8mm)
- HTS Kodu
- 8536.50.70.00
- Orientation
- Straight
- Release Force
- 6.118gf
- RoHS Durumu
- RoHS Compliant
- Montaj
- Chassis Mount, Panel, Screw
- Contact Materials
- Silver
- ECCN Kodu
- EAR99
- Contact Currentacmax
- 3A

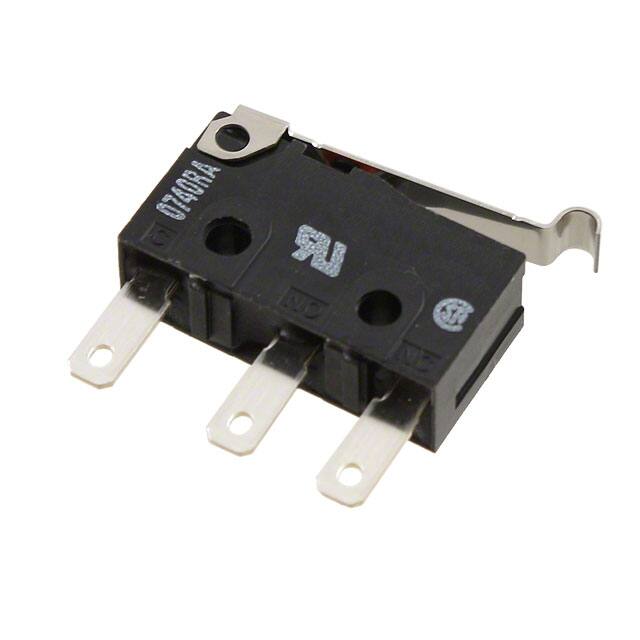

- Switch Type
- SNAP ACTING/LIMIT SWITCH
- Body Height
- 10.1mm
- Voltage Rated Ac
- 125V
- Ingress Protection
- IP67 - Dust Tight, Waterproof
- Seri
- D2SW
- Ambalaj
- Tray
- Body Length Or Diameter
- 19.8mm
- Actuator Travel
- 1 mm
- Montaj Tipi
- Chassis Mount
- Fabrika Tedarik Süresi
- 9 Weeks
- Mechanical Life
- 5,000,000 Cycles
- Body Breadth
- 6.4 mm
- Switch Function
- On-Mom
- Parça Durumu
- Active
- Akım Değeri
- 3A
- Differential Travel
- 0.031 (0.8mm)
- Actuator Type
- Lever, Simulated Roller
- Circuit
- SPDT
- Contact Currentdcmax
- 3A
- Çalışma Sıcaklığı
- -40°C~85°C
- Operating Position
- 0.420 (10.7mm)
- Kurşunsuz
- Lead Free
- Electricallife
- 200,000 Cycles
- Terminal
- Quick Connect
