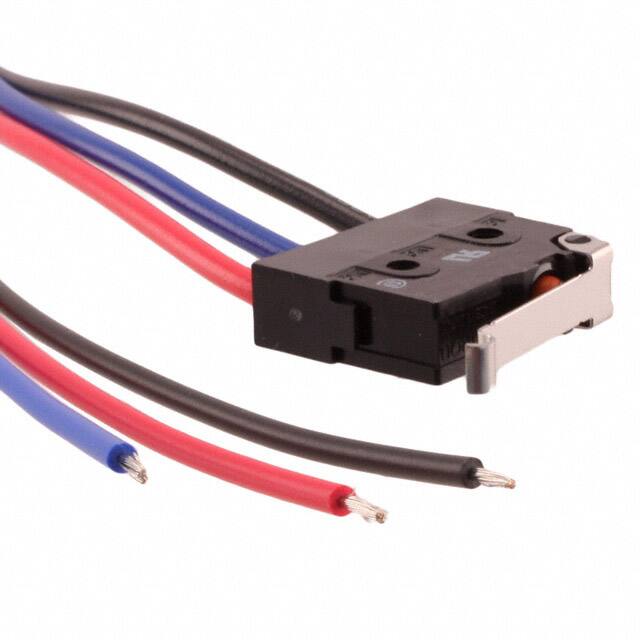

D2SW-3L3M

Teknik Özellikler

Depth

6.4mm

Voltage Rated Ac

125V

Ingress Protection

IP67 - Dust Tight, Waterproof

Actuator Material

Stainless Steel

Max Voltage Rating Dc

30V

Ambalaj

Bulk

Seri

D2SW

Montaj

Chassis Mount, Panel, Screw, Wire

Contact Current Rating

3A

RoHS Durumu

RoHS Compliant

ECCN Kodu

EAR99

Contact Materials

Silver

Kılıf / Paket

125

Release Force

6.118gf

Terminal Stili

Wire Leads

Orientation

Straight

Overtravel

0.040 (1.0mm)

Weight

10g

Yayın Yılı

2004

Ratings

Dust Tight, IP67, Waterproof

Voltage Rated Dc

30V

Current Rating Amps

3A AC/DC

Operating Force

60gf

Nem Hassasiyeti (MSL)

1 (Unlimited)

Operating Position

0.420 (10.7mm)

Electricallife

200,000 Cycles

Terminal

Wire Leads

Max Voltage Rating Ac

250V

Circuit

SPDT

Çalışma Sıcaklığı

-40°C~85°C

Akım Değeri

3A

Differential Travel

0.031 (0.8mm)

Actuator Type

Lever, Simulated Roller

Switch Function

On-Mom

Parça Durumu

Active

Max Current Rating

3A

Reach Svhc

Unknown

Montaj Tipi

Chassis Mount

Fabrika Tedarik Süresi

11 Weeks

Mechanical Life

5,000,000 Cycles
