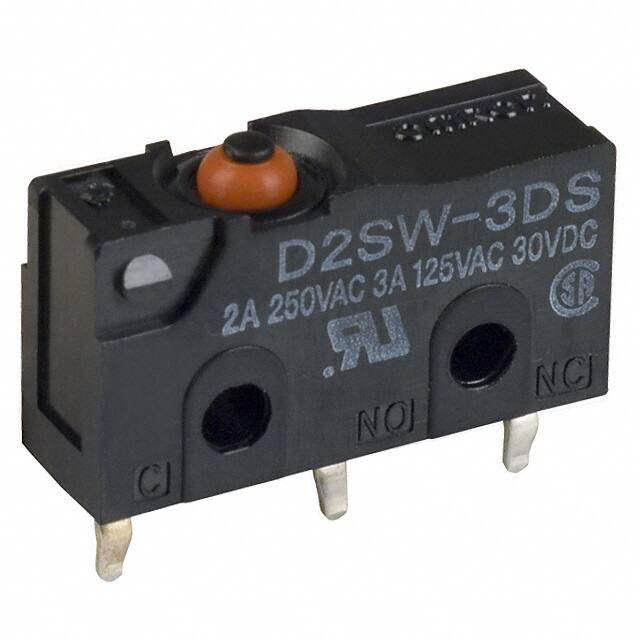

D2SW-3DS

Teknik Özellikler

Current Rating Amps

3A AC/DC

JESD-609 Kodu

e4

Contact Dc Max Rating R Load

3A@30VDC

Operating Force

180gf

Circuit

SPDT

Differential Travel

0.004 (0.1mm)

Actuator Type

Round (Pin Plunger)

Max Current Rating

3A

Parça Durumu

Active

Mechanical Life

5,000,000 Cycles

Ingress Protection

IP67 - Dust Tight, Waterproof

Body Height

10.1mm

Seri

D2SW

ECCN Kodu

EAR99

Montaj

Panel, Screw, Through Hole

Contact Current Rating

3A

Contact Currentacmax

3A

HTS Kodu

8536.50.70.00

Contact Ac Max Rating R Load

3A@125VAC

Orientation

Straight

Genişlik

19.8mm

Overtravel

0.020 (0.5mm)

Ratings

Dust Tight, IP67, Waterproof

Kurşunsuz Kodu

yes

Voltage Rated Dc

30V

Nem Hassasiyeti (MSL)

Not Applicable

Operating Position

0.330 (8.4mm)

Kurşunsuz

Lead Free

Terminal

PC Pins

Electricallife

200,000 Cycles

Pretravel

0.024 (0.6mm)

Max Voltage Rating Ac

250V

Çalışma Sıcaklığı

-40°C~85°C

Contact Currentdcmax

3A

Akım Değeri

3A

Switch Function

On-Mom

Reach Svhc

Unknown

Montaj Tipi

Through Hole

Fabrika Tedarik Süresi

12 Weeks

Actuator Travel

1.1 mm
