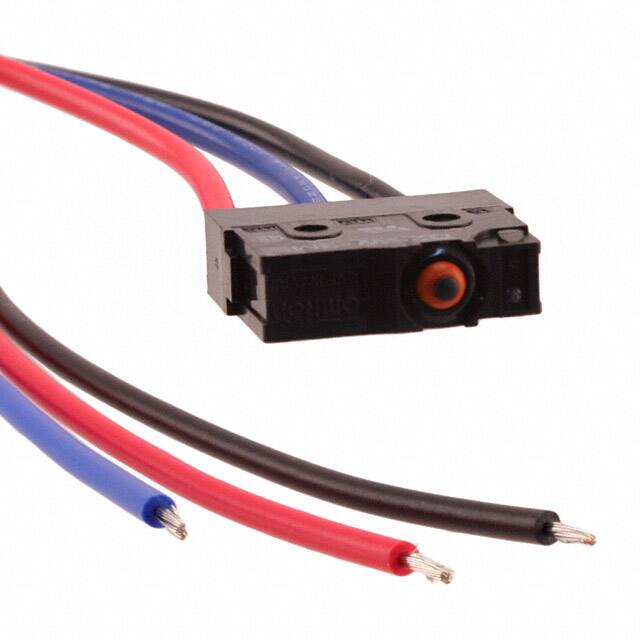

D2SW-01MS

Teknik Özellikler

Mechanical Life

5,000,000 Cycles

Parça Durumu

Active

Max Current Rating

100mA

Differential Travel

0.004 (0.1mm)

Actuator Type

Round (Pin Plunger)

Circuit

SPDT

Operating Force

180gf

JESD-609 Kodu

e4

Contact Dc Max Rating R Load

.1A@30VDC

Current Rating Amps

100mA AC/DC

Voltage Rated Dc

30V

Ratings

Dust Tight, IP67, Waterproof

Kurşunsuz Kodu

yes

Overtravel

0.020 (0.5mm)

Orientation

Straight

HTS Kodu

8536.50.70.00

Contact Ac Max Rating R Load

.1A@125VAC

Contact Currentacmax

0.1A

ECCN Kodu

EAR99

Contact Current Rating

100mA

Montaj

Chassis Mount, Panel, Screw, Wire

Seri

D2SW

Ingress Protection

IP67 - Dust Tight, Waterproof

Body Height

16.9mm

Actuator Travel

1.1 mm

Uzunluk

21.2mm

Fabrika Tedarik Süresi

11 Weeks

Montaj Tipi

Chassis Mount

Reach Svhc

Unknown

Switch Function

On-Mom

Akım Değeri

100mA

Çalışma Sıcaklığı

-40°C~85°C

Contact Currentdcmax

0.1A

Pretravel

0.024 (0.6mm)

Max Voltage Rating Ac

125V

Terminal

Wire Leads

Electricallife

200,000 Cycles

Kurşunsuz

Lead Free

Operating Position

0.330 (8.4mm)

Nem Hassasiyeti (MSL)

1 (Unlimited)
