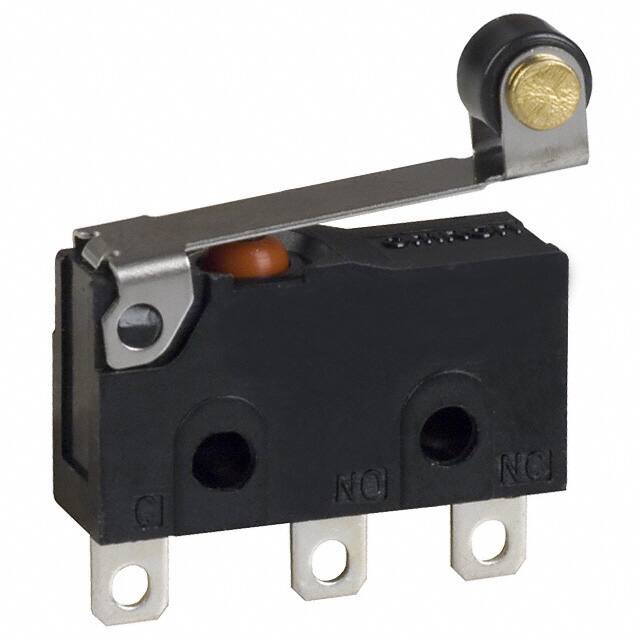

D2SW-01L2H

Teknik Özellikler

Actuator Type

Lever, Roller

Differential Travel

0.031 (0.8mm)

Akım Değeri

100mA

Parça Durumu

Obsolete

Max Current Rating

100mA

Reach Svhc

Unknown

Switch Function

On-Mom

Mechanical Life

5,000,000 Cycles

Fabrika Tedarik Süresi

13 Weeks

Montaj Tipi

Chassis Mount

Uzunluk

22.05mm

Current Rating Amps

100mA AC/DC

Nem Hassasiyeti (MSL)

1 (Unlimited)

Operating Force

60gf

Electricallife

200,000 Cycles

Terminal

Solder

Operating Position

0.571 (14.5mm)

Çalışma Sıcaklığı

-40°C~85°C

Max Voltage Rating Ac

125V

Circuit

SPDT

Overtravel

0.040 (1.0mm)

Weight

2g

Yayın Yılı

2004

Voltage Rated Dc

30V

Ratings

Dust Tight, IP67, Waterproof

Actuator Material

Polyacetal, Stainless Steel

Max Voltage Rating Dc

30V

Ambalaj

Bulk

Seri

D2SW

Depth

6.4mm

Ingress Protection

IP67 - Dust Tight, Waterproof

Voltage Rated Ac

125V

Radyasyon Dayanımı

No

RoHS Durumu

RoHS Compliant

Contact Current Rating

100mA

Montaj

Chassis Mount, Panel, Screw, Solder

Contact Materials

Gold

ECCN Kodu

EAR99

Release Force

6.118gf

Kılıf / Paket

100
