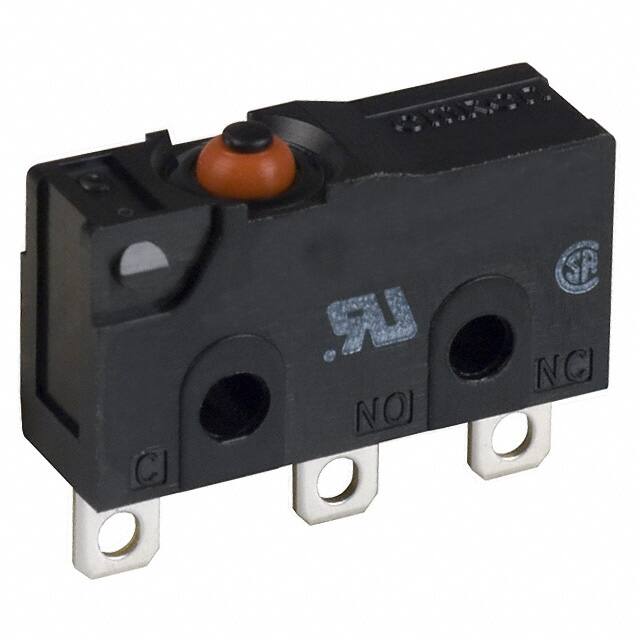

D2SW-01HS

Teknik Özellikler

Overtravel

0.020 (0.5mm)

Voltage Rated Dc

30V

Kurşunsuz Kodu

yes

Ratings

Dust Tight, IP67, Waterproof

Contact Currentacmax

0.1A

Contact Current Rating

100mA

Montaj

Chassis Mount, Panel, Screw, Solder

ECCN Kodu

EAR99

Seri

D2SW

Body Height

10.1mm

Ingress Protection

IP67 - Dust Tight, Waterproof

Orientation

Straight

Contact Ac Max Rating R Load

.1A@125VAC

HTS Kodu

8536.50.70.00

Max Current Rating

100mA

Parça Durumu

Active

Actuator Type

Round (Pin Plunger)

Differential Travel

0.004 (0.1mm)

Mechanical Life

5,000,000 Cycles

Operating Force

180gf

JESD-609 Kodu

e4

Contact Dc Max Rating R Load

.1A@30VDC

Current Rating Amps

100mA AC/DC

Circuit

SPDT

Weight

2g

Pretravelmax

0.6 mm

Yayın Yılı

2004

Switch Type

SNAP ACTING/LIMIT SWITCH

RoHS Durumu

RoHS Compliant

Contact Materials

Gold

Ambalaj

Tray

Max Voltage Rating Dc

30V

Depth

6.4mm

Voltage Rated Ac

125V

Terminal Stili

Solder Lug

Release Force

30gf

Kılıf / Paket

100

Reach Svhc

Unknown

Switch Function

On-Mom

Akım Değeri

100mA
