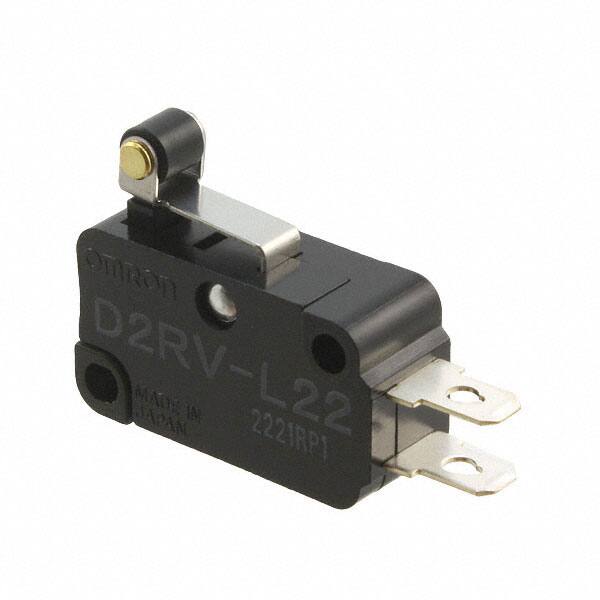

D2RV-L22

Teknik Özellikler

Uzunluk

27.8mm

Actuator Travel

2.2 mm

Montaj Tipi

Chassis Mount

Fabrika Tedarik Süresi

8 Weeks

Mechanical Life

10,000,000 Cycles

Switch Function

Off-Mom

Parça Durumu

Active

Yükseklik

15.9mm

Max Current Rating

250mA

Akım Değeri

250mA

Differential Travel

0.040 (1.0mm)

Actuator Type

Lever, Roller

Pretravel

0.071 (1.8mm)

Circuit

SPST-NO

Contact Currentdcmax

0.25A

Çalışma Sıcaklığı

-10°C~60°C

Operating Position

0.803 (20.4mm)

Electricallife

3,000,000 Cycles

Terminal

Solder

Nem Hassasiyeti (MSL)

Not Applicable

Operating Force

50gf

Current Rating Amps

250mA DC

Contact Dc Max Rating R Load

.25A@100VDC

Voltage Rated Dc

100V

Yayın Yılı

2004

Pretravelmax

1.8 mm

Overtravel

0.015 (0.4mm)

Throw Configuration

SPST

Terminal Stili

Quick Connect - 0.187 (4.7mm)

HTS Kodu

8536.50.70.00

Orientation

Straight

Onay Kuruluşu

UL

Montaj

Chassis Mount, Panel, Screw, Solder

RoHS Durumu

RoHS Compliant

ECCN Kodu

EAR99

Switch Type

SNAP ACTING/LIMIT SWITCH

Depth

10.3mm

Ingress Protection

IP40

Max Voltage Rating Dc

100V

Seri

D2RV
